描述：

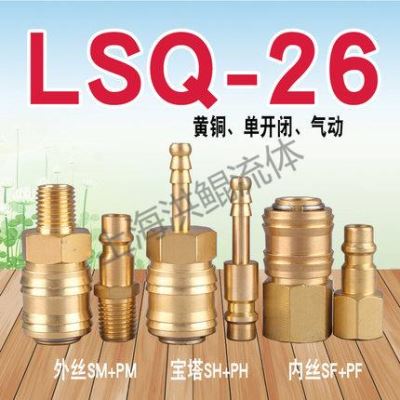

LSQ-26单手半自动气动快速接头（黄铜）
→产品描述：有效通径7.6毫米，欧洲标准。
→技术优势：单手操作，钢销锁紧设计。
→产品应用：气动工具，汽车工业，工程机械。
→互换性：希恩（CEJN）320系列、利达时（RECTUS）25KA与26KA系列。
→工作压力：1.6Mpa
→工作温度：-20℃+120℃

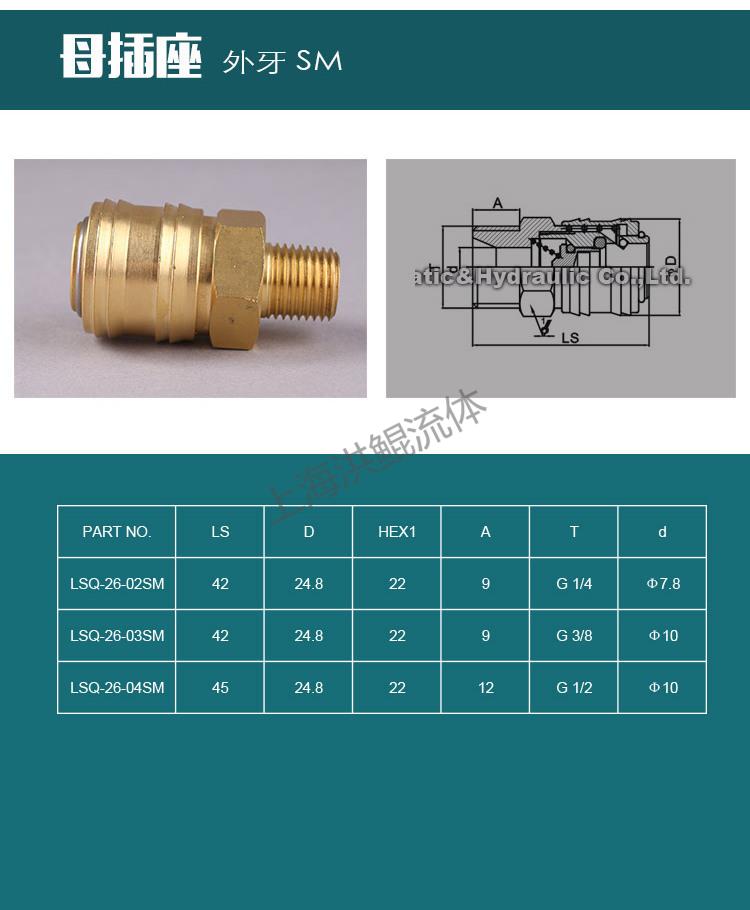

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-26-02SM | 42 | 24.8 | 22 | 9 | G 1/4 | Φ 7.8 |
| LSQ-26-03SM | 42 | 24.8 | 22 | 9 | G 3/8 | Φ 10 |
| LSQ-26-04SM | 45 | 24.8 | 22 | 12 | G 1/2 | Φ 10 |

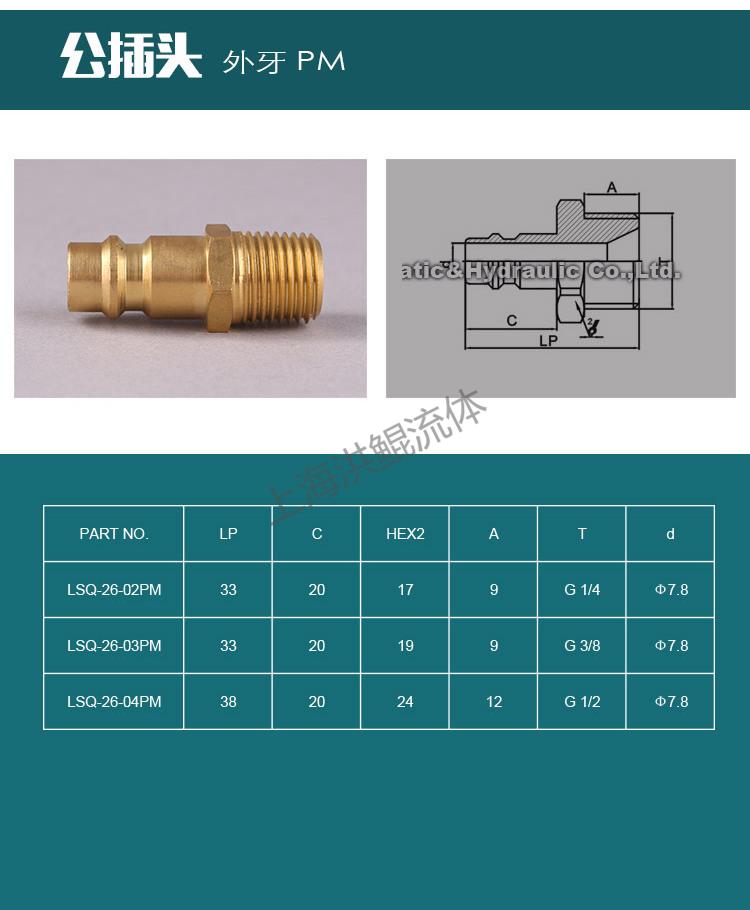

| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-26-02PM | 33 | 20 | 17 | 9 | G 1/4 | Φ 7.8 |
| LSQ-26-03PM | 33 | 20 | 19 | 9 | G 3/8 | Φ 7.8 |
| LSQ-26-04PM | 38 | 20 | 24 | 12 | G 1/2 | Φ 7.8 |

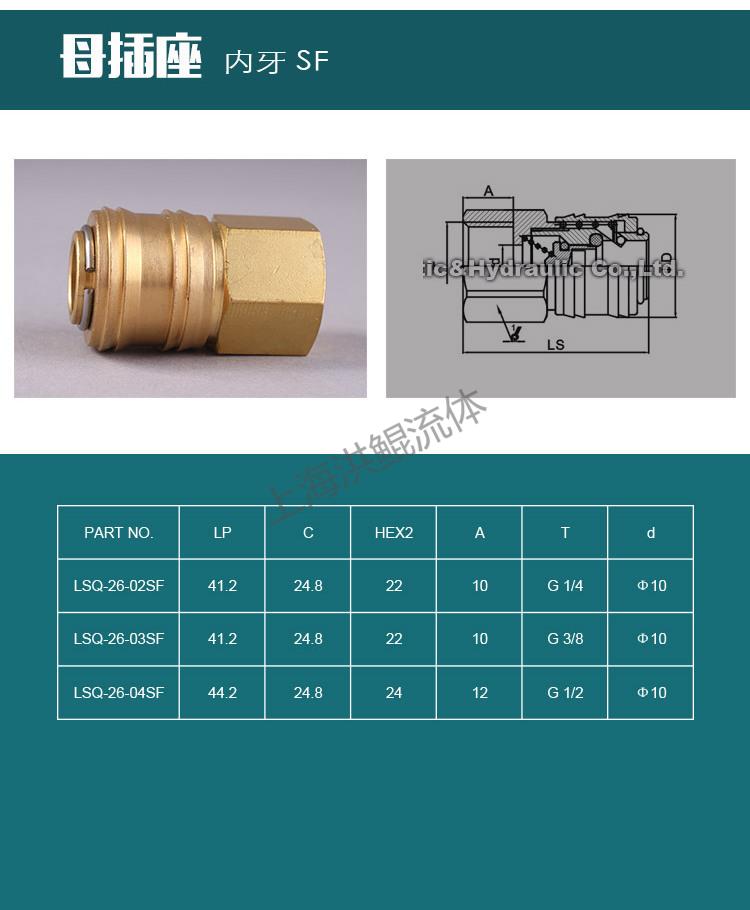

| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-26-02SF | 41.2 | 24.8 | 22 | 10 | G 1/4 | Φ 10 |
| LSQ-26-03SF | 41.2 | 24.8 | 22 | 10 | G 3/8 | Φ 10 |
| LSQ-26-04SF | 44.2 | 24.8 | 24 | 12 | G 1/2 | Φ 10 |

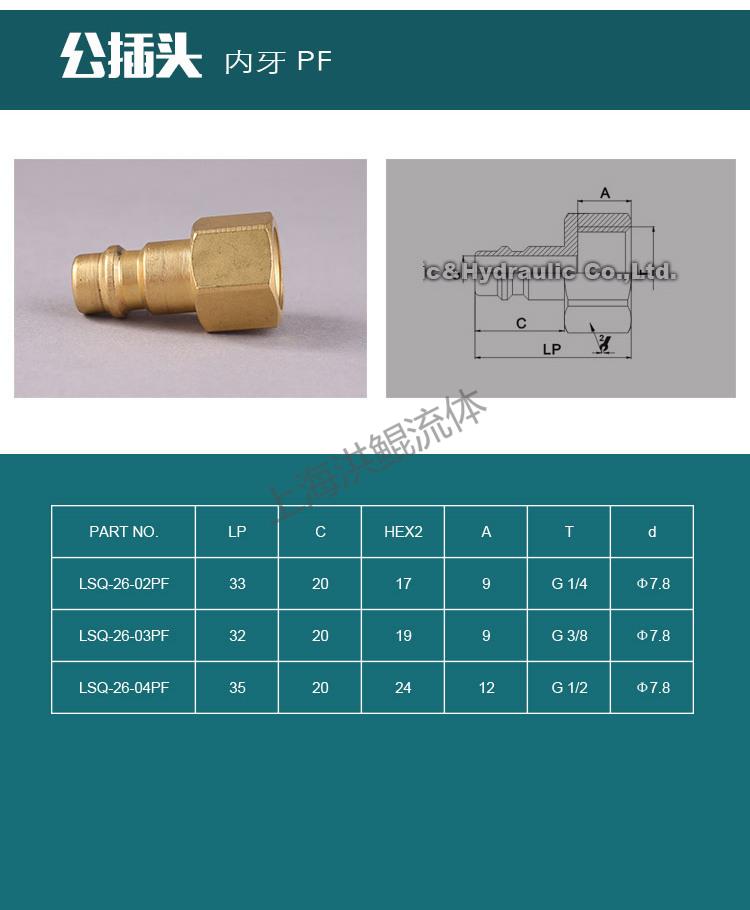

| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-26-02PF | 33 | 20 | 17 | 9 | G 1/4 | Φ 7.8 |
| LSQ-26-03PF | 32 | 20 | 19 | 9 | G 3/8 | Φ 7.8 |
| LSQ-26-04PF | 35 | 20 | 24 | 12 | G 1/2 | Φ 7.8 |

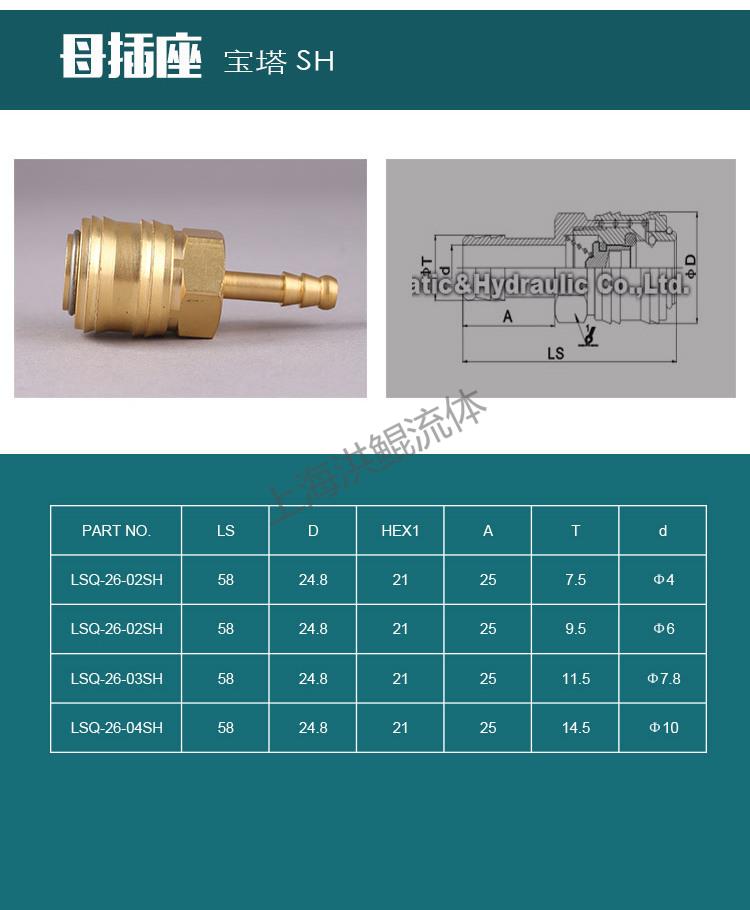

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-26-02SH | 58 | 24.8 | 21 | 25 | 7.5 | Φ 4 |
| LSQ-26-02SH | 58 | 24.8 | 21 | 25 | 9.5 | Φ 6 |
| LSQ-26-03SH | 58 | 24.8 | 21 | 25 | 11.5 | Φ 7.8 |
| LSQ-26-04SH | 58 | 24.8 | 21 | 25 | 14.5 | Φ 10 |

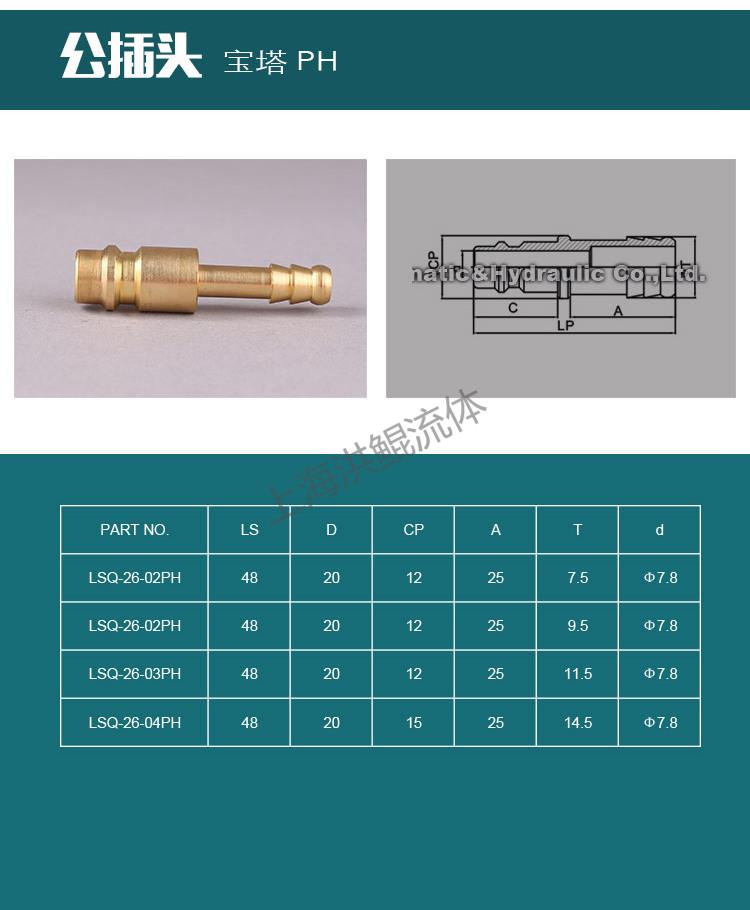

| PART NO. | LS | D | CP | A | T | d |
| LSQ-26-02PH | 48 | 20 | 12 | 25 | 7.5 | Φ 7.8 |
| LSQ-26-02PH | 48 | 20 | 12 | 25 | 9.5 | Φ 7.8 |
| LSQ-26-03PH | 48 | 20 | 12 | 25 | 11.5 | Φ 7.8 |
| LSQ-26-04PH | 48 | 20 | 15 | 25 | 14.5 | Φ 7.8 |
