描述：

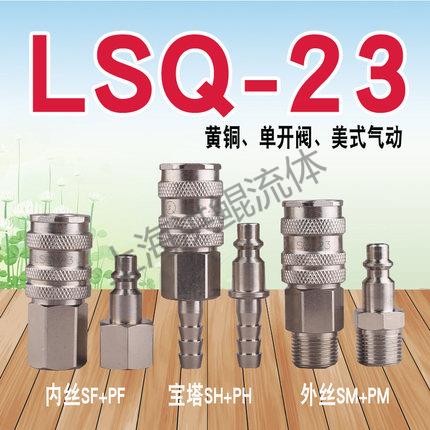

LSQ-23开闭式气动快速接头（黄铜）
→产品描述：有效通径5.3毫米，ISO6150B标准。
→技术优势：超大流量阀，单手操作。
→产品应用：气动工具，汽车工业，工程机械。
→互换性：派克(PARKER)20系列，希恩（CEJN）310系列、汉森(HANSEN)3000系列、利达时（RECTUS）23KA系列。
→工作压力：1.6Mpa
→工作温度：-20℃+120℃

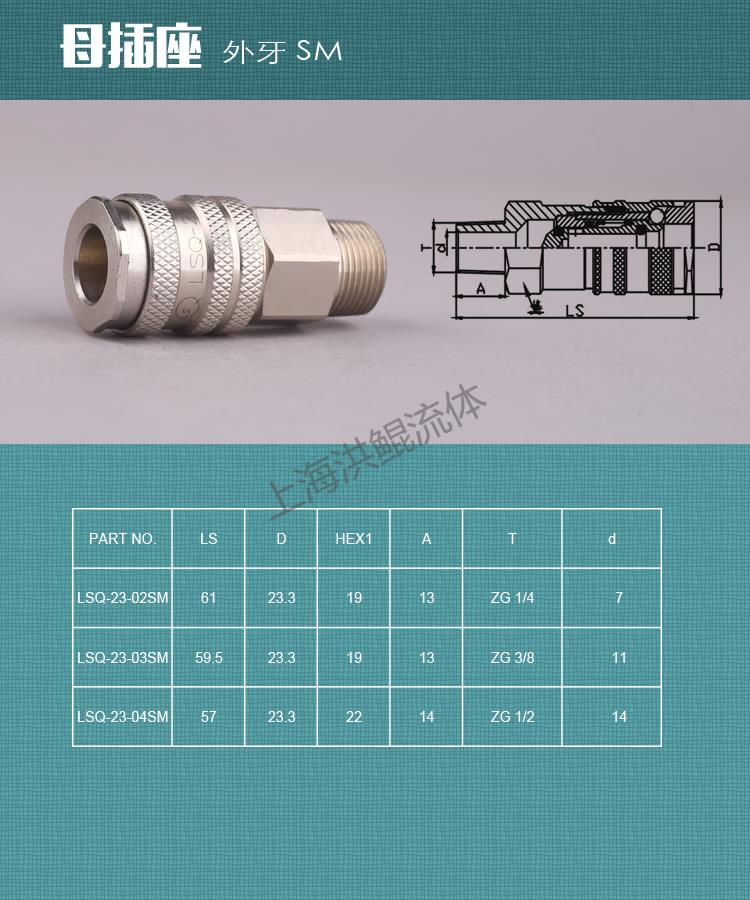

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-23-02SM | 61 | 23.3 | 19 | 13 | ZG 1/4 | Φ 7 |
| LSQ-23-03SM | 59.5 | 23.3 | 19 | 13 | ZG 3/8 | Φ 11 |
| LSQ-23-04SM | 57 | 23.3 | 22 | 14 | ZG 1/2 | Φ 14 |

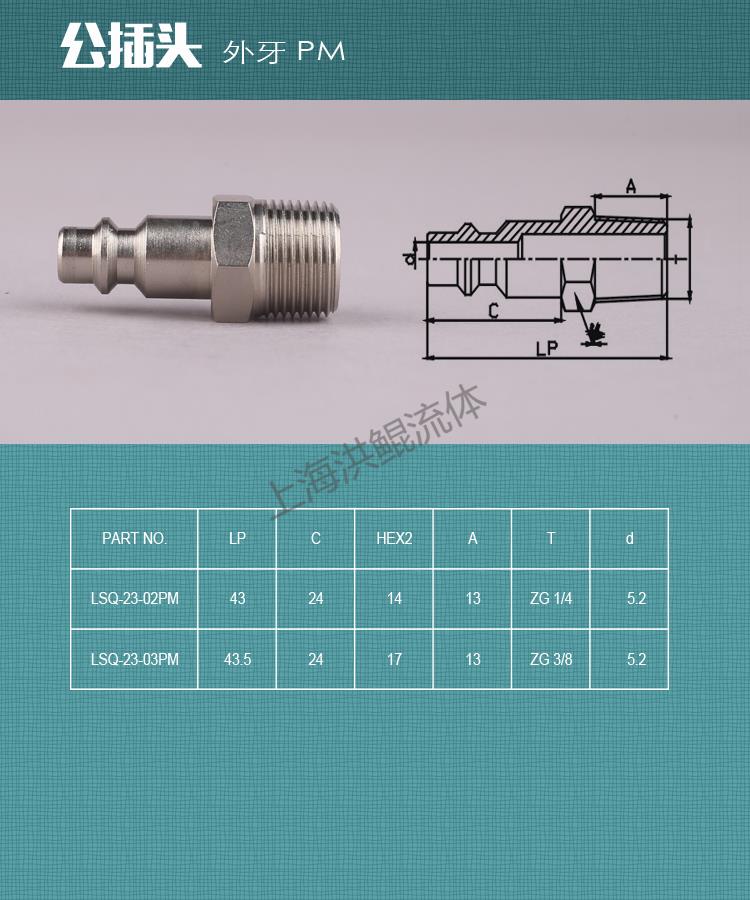

| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-23-02PM | 43 | 24 | 14 | 13 | ZG 1/4 | Φ 5.2 |
| LSQ-23-03PM | 43.5 | 24 | 17 | 13 | ZG 3/8 | Φ 5.2 |

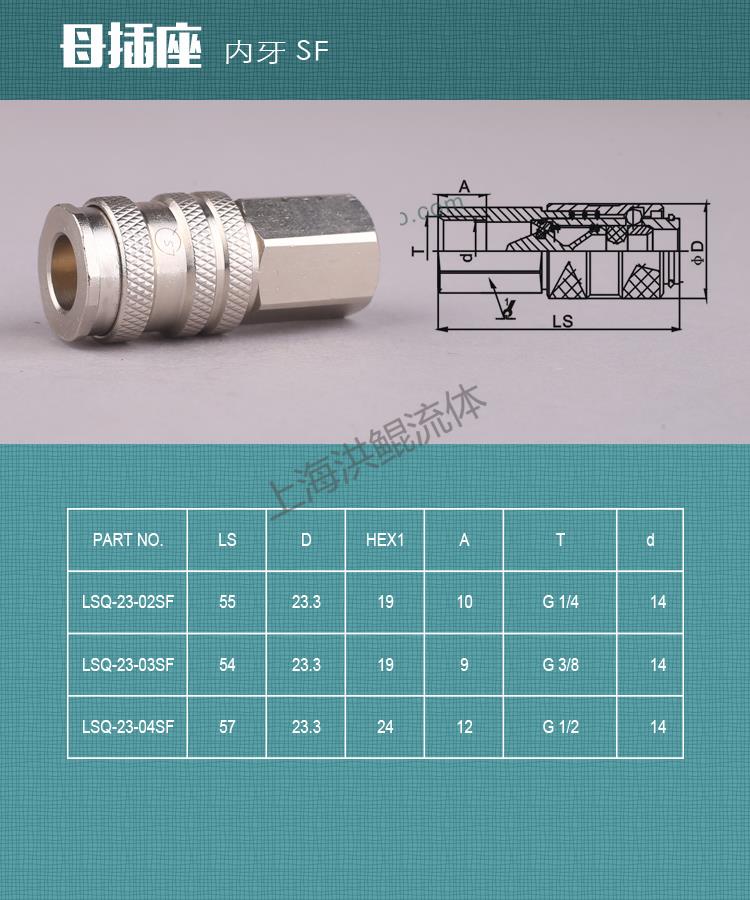

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-23-02SF | 55 | 23.3 | 19 | 10 | G 1/4 | Φ 14 |
| LSQ-23-03SF | 54 | 23.3 | 19 | 9 | G 3/8 | Φ 14 |
| LSQ-23-04SF | 57 | 23.3 | 24 | 12 | G 1/2 | Φ 14 |

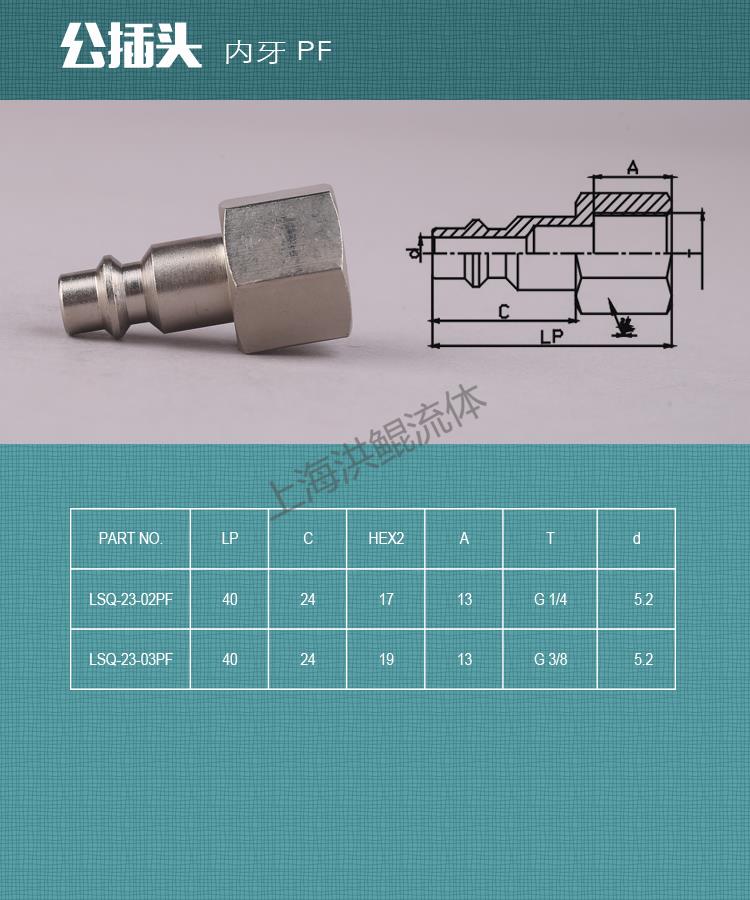

| PART NO. | LP | C | HEX2 | A | T | d |
| LSQ-23-02PF | 40 | 24 | 17 | 13 | G 1/4 | Φ 5.2 |
| LSQ-23-03PF | 40 | 24 | 19 | 13 | G 3/8 | Φ 5.2 |

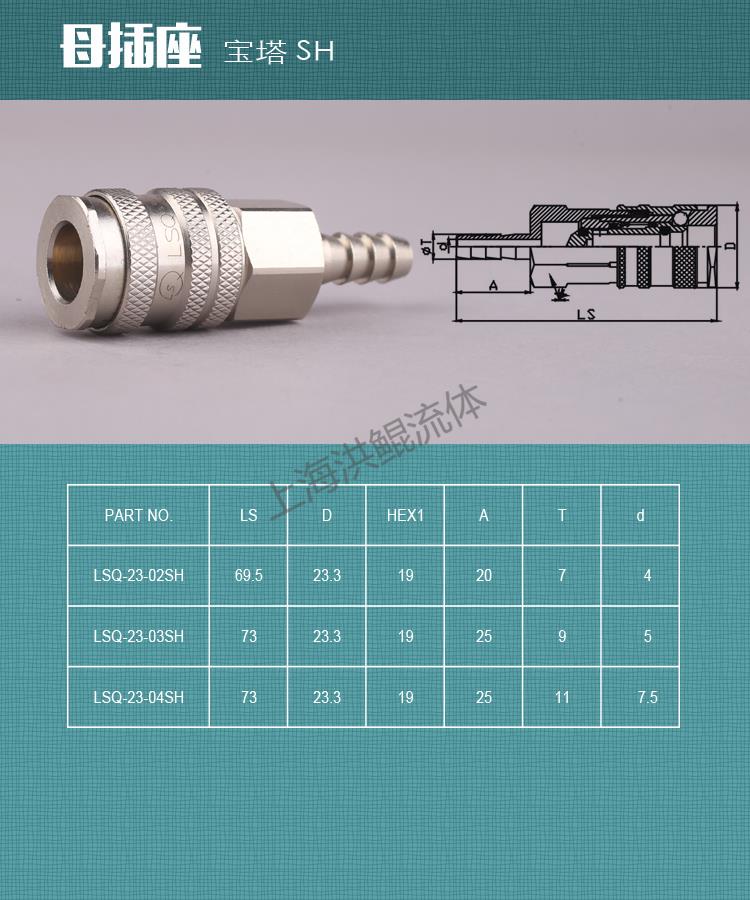

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-23-02SH | 69.5 | 23.3 | 19 | 20 | 7 | Φ 4 |
| LSQ-23-03SH | 73 | 23.3 | 19 | 25 | 9 | Φ 5 |
| LSQ-23-04SH | 73 | 23.3 | 19 | 25 | 11 | Φ 7.5 |

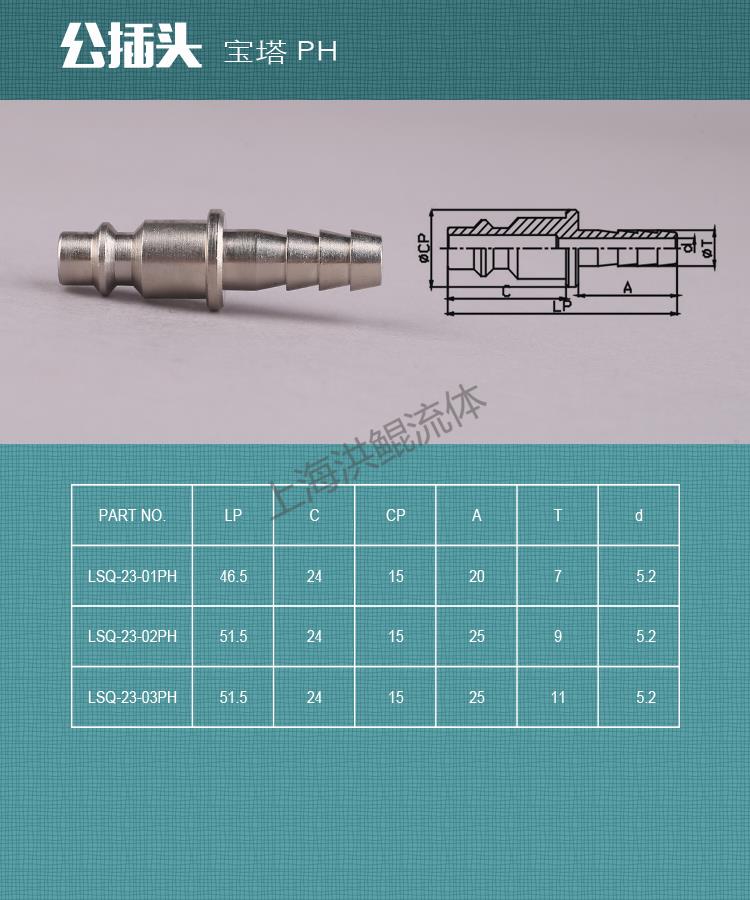

| PART NO. | LP | C | CP | A | T | d |
| LSQ-23-01PH | 46.5 | 24 | 15 | 20 | 7 | Φ 5.2 |
| LSQ-23-02PH | 51.5 | 24 | 15 | 25 | 9 | Φ 5.2 |
| LSQ-23-03PH | 51.5 | 24 | 15 | 25 | 11 | Φ 5.2 |
