描述：

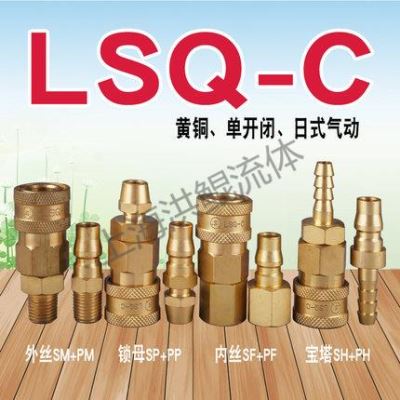

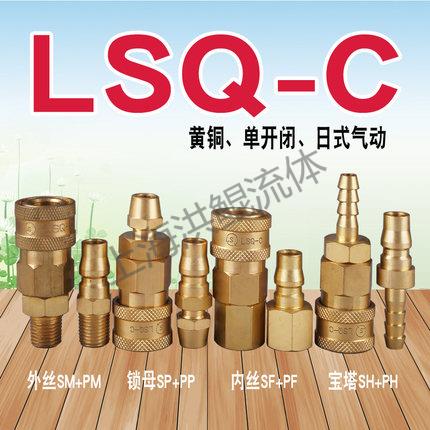

LSQ-C单开闭气动快速接头（碳钢）
→产品描述：亚洲最为广泛使用的连接头型式。
→技术优势：结构简单、重量轻，多种连接备选。
→产品应用：气动工具，汽车工业，压缩空气，工程配套，压缩机。
→互换性：日东（NITTO）HI-CUPLA系列、希恩（CEJN）315系列、利达时（RECTUS）13KA系列
→工作压力：1.0Mpa
→工作温度：-20℃+120℃

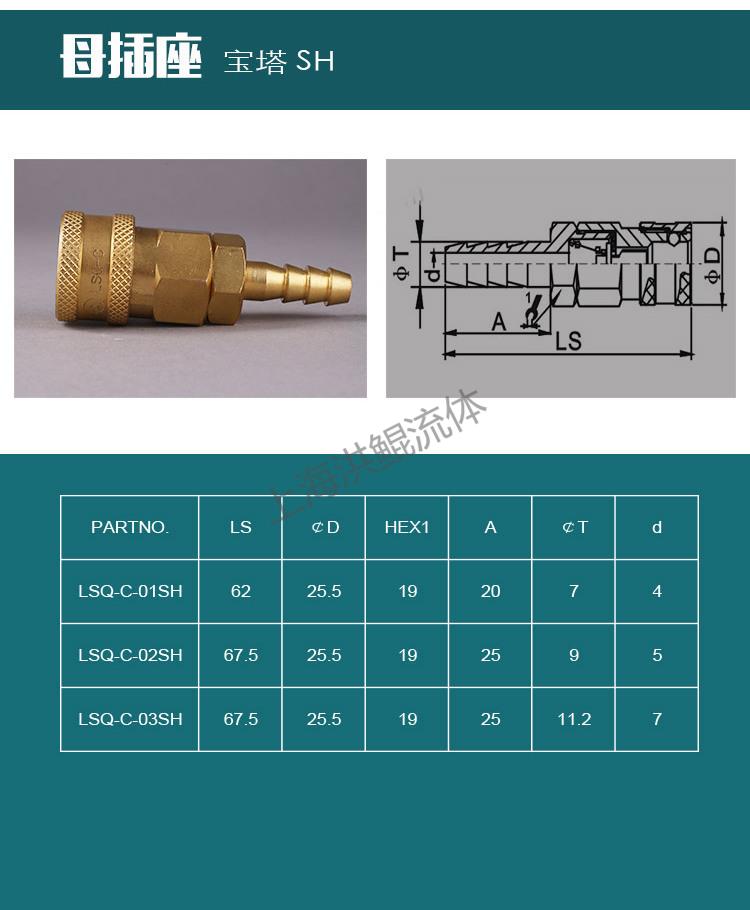

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-C-01SH | 62 | 25.5 | 19 | 20 | 7 | 4 |
| LSQ-C-02SH | 67.5 | 25.5 | 19 | 25 | 9 | 5 |
| LSQ-C-03SH | 67.5 | 25.5 | 19 | 25 | 11.2 | 7 |
| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| LSQ-C-02SF | 52.5 | 25.5 | 19 | 13 | BSP1/4"19P | 9 |
| LSQ-C-03SF | 52.5 | 25.5 | 19 | 15 | BSP3/8"19P | 9 |
| LSQ-C-04SF | 55.5 | 25.5 | 24 | 16 | BSP1/2"19P | 9 |

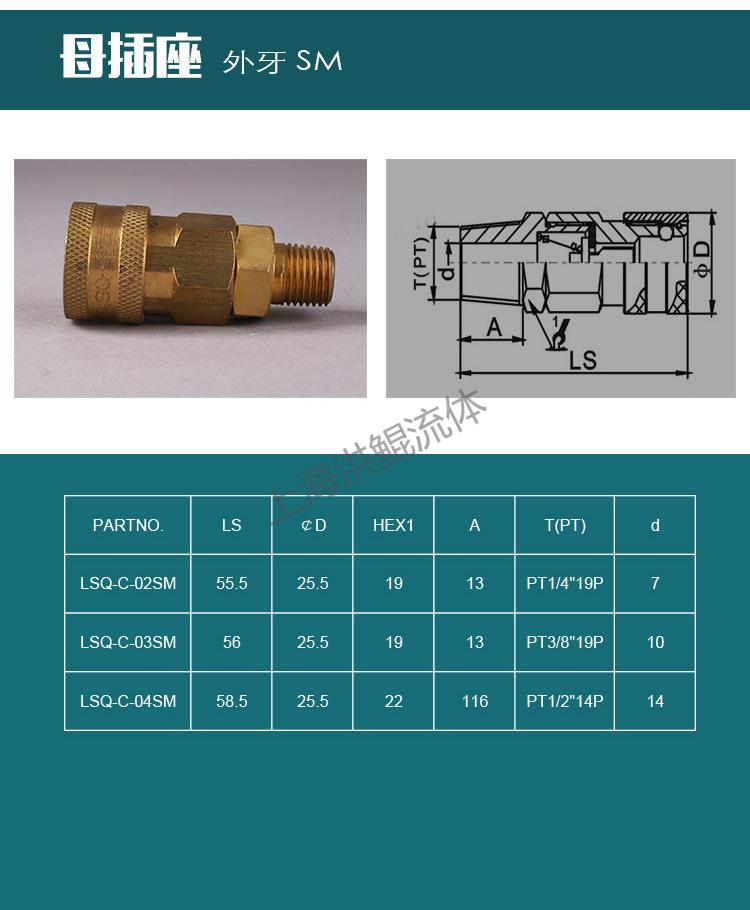

| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | d |
| LSQ-C-02SM | 55.5 | 25.5 | 19 | 13 | PT1/4"19P | 7 |
| LSQ-C-03SM | 56 | 25.5 | 19 | 13 | PT3/8"19P | 10 |
| LSQ-C-04SM | 58.5 | 25.5 | 22 | 116 | PT1/2"14P | 14 |

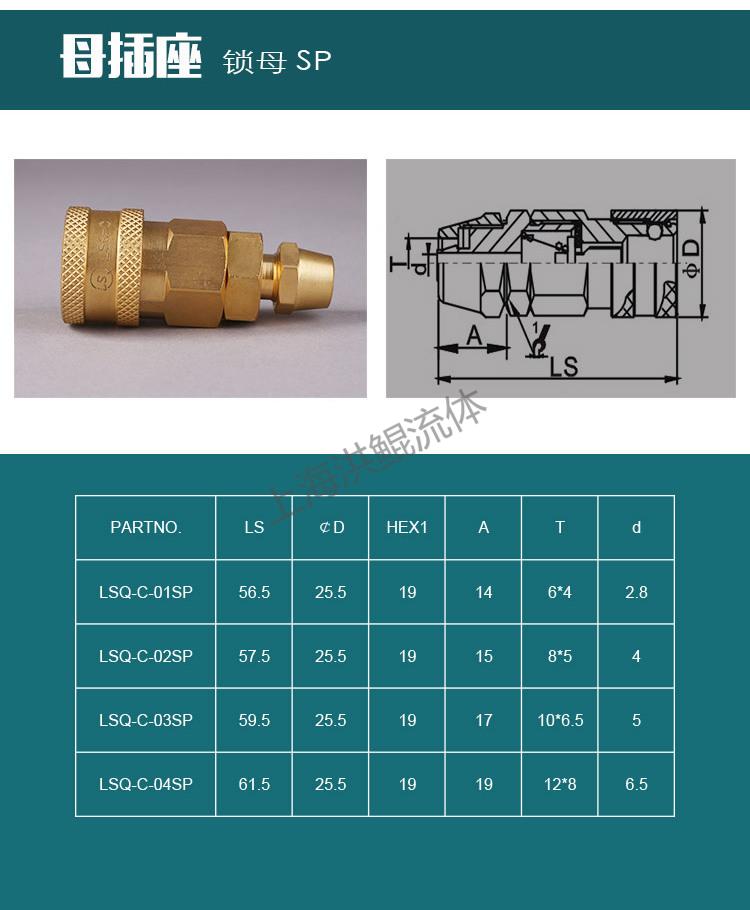

| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-C-01SP | 56.5 | 25.5 | 19 | 14 | 6*4 | 2.8 |
| LSQ-C-02SP | 57.5 | 25.5 | 19 | 15 | 8*5 | 4 |
| LSQ-C-03SP | 59.5 | 25.5 | 19 | 17 | 10*6.5 | 5 |
| LSQ-C-04SP | 61.5 | 25.5 | 19 | 19 | 12*8 | 6.5 |

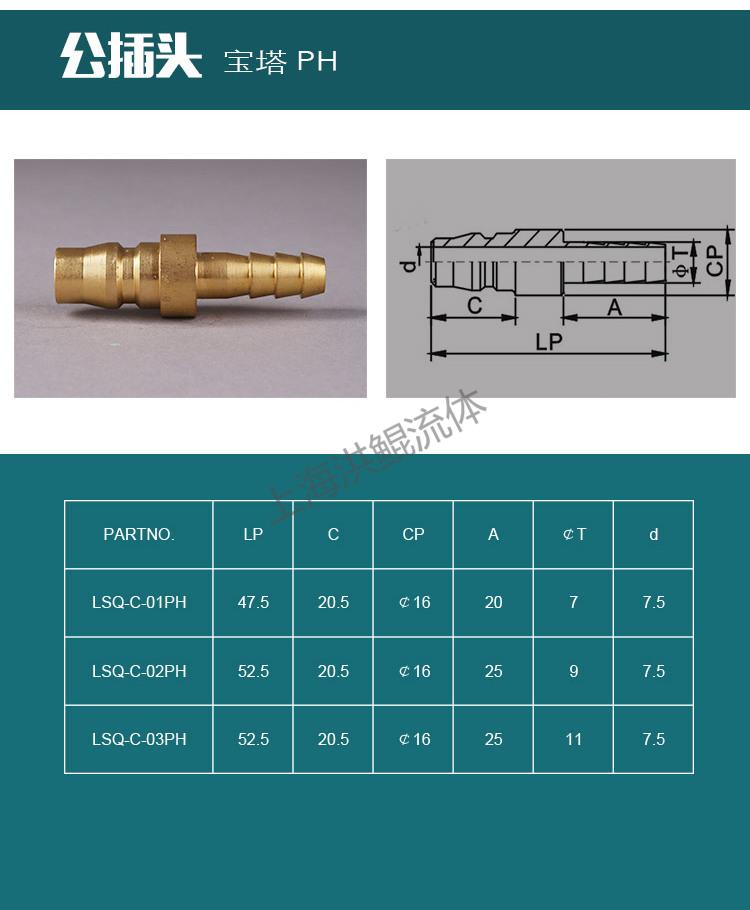

| PARTNO. | LP | C | CP | A | ￠T | d |
| LSQ-C-01PH | 47.5 | 20.5 | ￠16 | 20 | 7 | 7.5 |
| LSQ-C-02PH | 52.5 | 20.5 | ￠16 | 25 | 9 | 7.5 |
| LSQ-C-03PH | 52.5 | 20.5 | ￠16 | 25 | 11 | 7.5 |

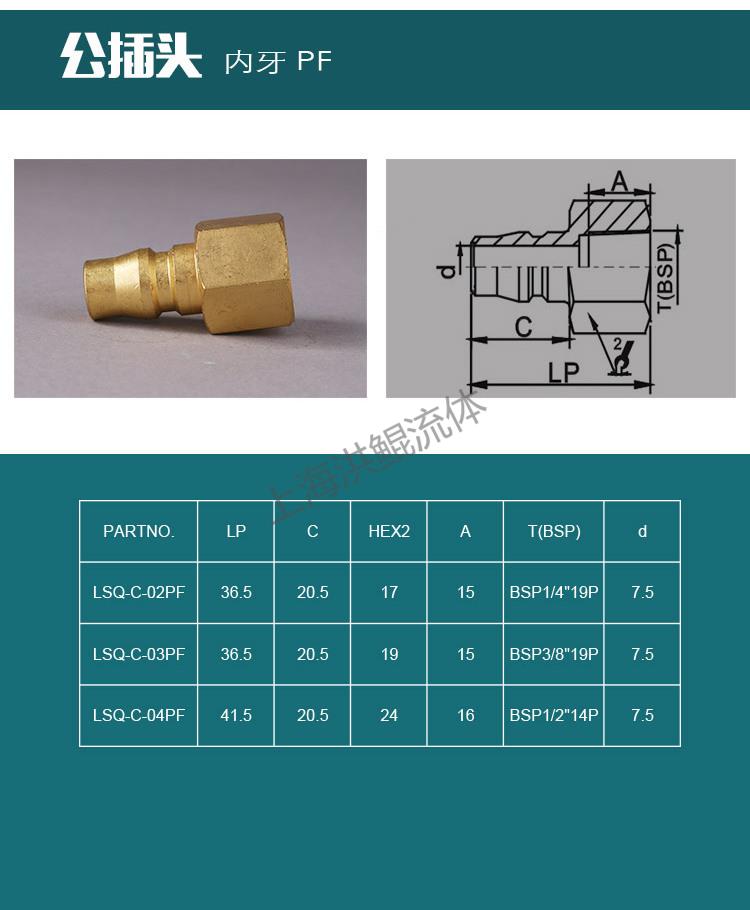

| PARTNO. | LP | C | HEX2 | A | T(BSP) | d |
| LSQ-C-02PF | 36.5 | 20.5 | 17 | 15 | BSP1/4"19P | 7.5 |
| LSQ-C-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8"19P | 7.5 |
| LSQ-C-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2"14P | 7.5 |

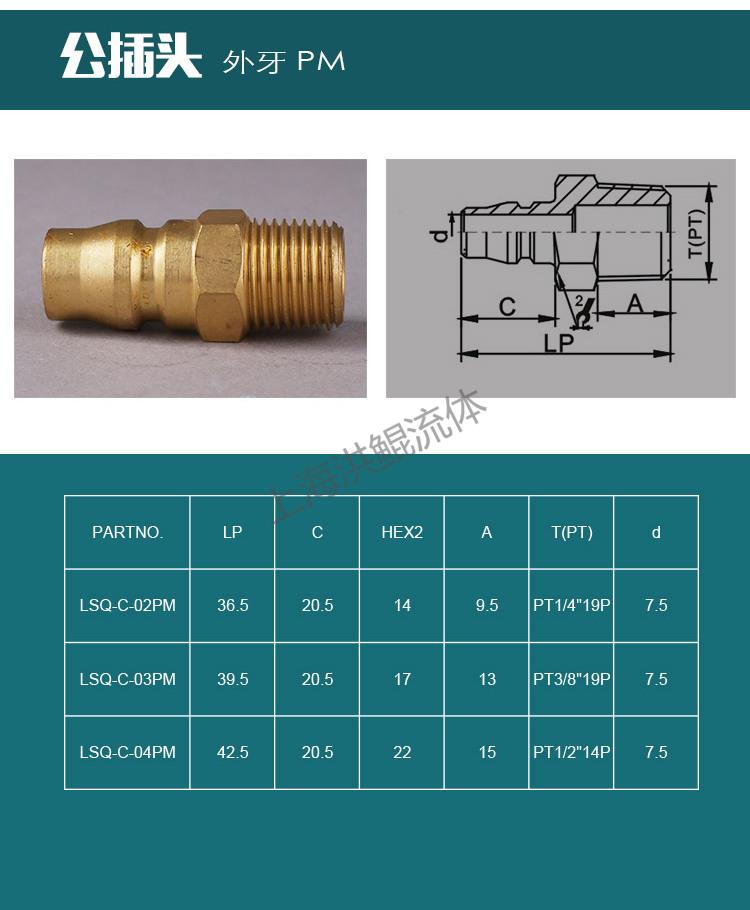

| PARTNO. | LP | C | HEX2 | A | T(PT) | d |
| LSQ-C-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4"19P | 7.5 |
| LSQ-C-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8"19P | 7.5 |
| LSQ-C-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2"14P | 7.5 |

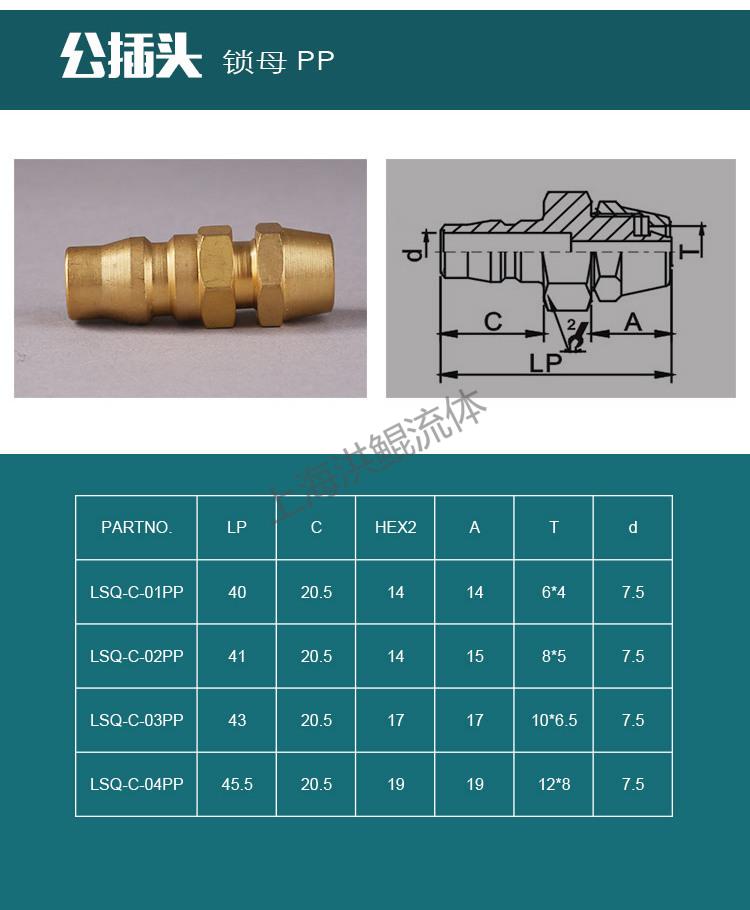

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-C-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| LSQ-C-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| LSQ-C-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| LSQ-C-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
