描述：

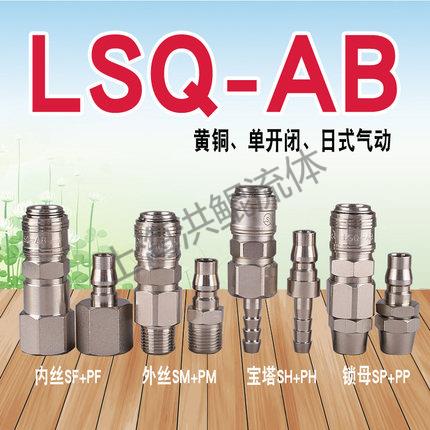

LSQ-AB单手半自动快速接头（黄铜）
→产品描述：单手操作。
→技术优势：单手操作、重量轻，流量高，多种连接备选。
→产品应用：气动工具，汽车工业，压缩空气，工程配套，压缩机。
→互换性：日东（NITTO）HI-CUPLA系列、希恩（CEJN）315系列、利达时（RECTUS）13KA系列
→工作压力：1.0Mpa
→工作温度：-20℃+120℃

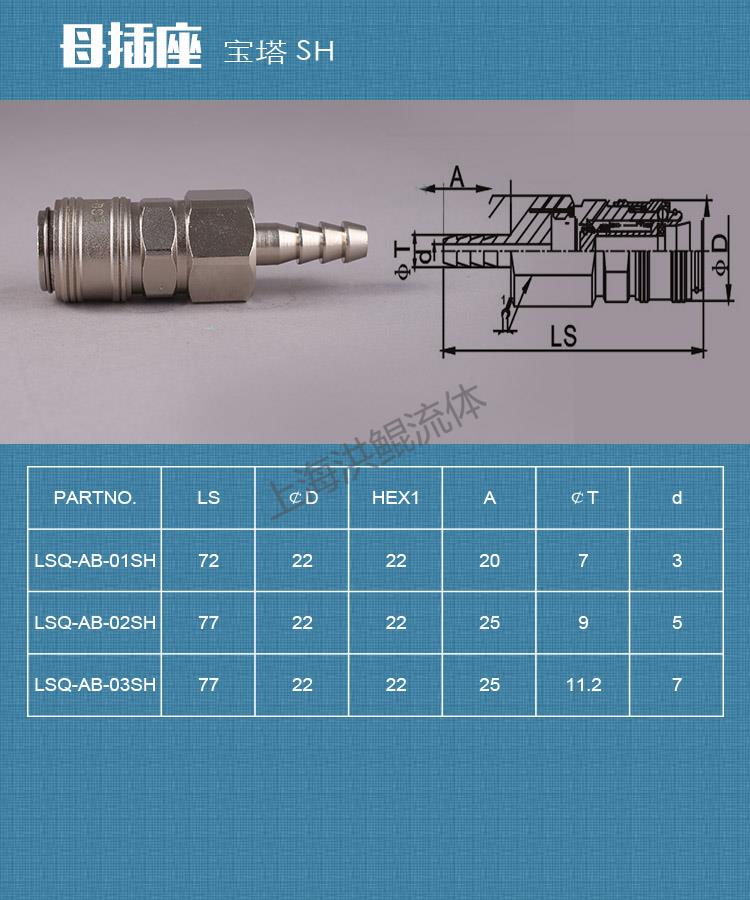

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-AB-01SH | 72 | 22 | 22 | 20 | 7 | 3 |
| LSQ-AB-02SH | 77 | 22 | 22 | 25 | 9 | 5 |
| LSQ-AB-03SH | 77 | 22 | 22 | 25 | 11.2 | 7 |

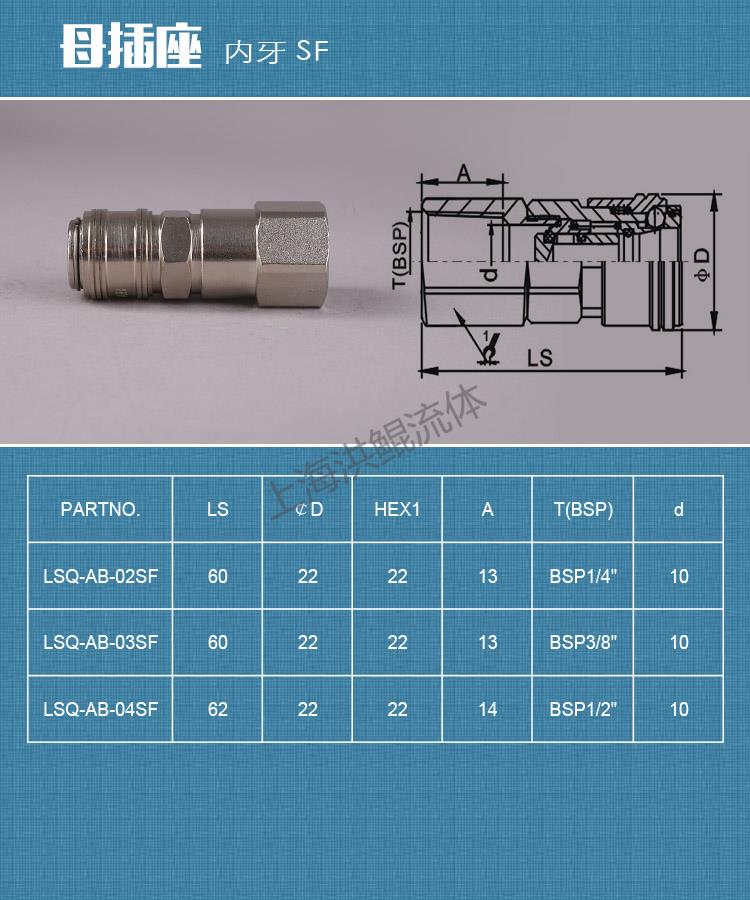

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| LSQ-AB-02SF | 60 | 22 | 22 | 13 | BSP1/4" | 10 |
| LSQ-AB-03SF | 60 | 22 | 22 | 13 | BSP3/8" | 10 |
| LSQ-AB-04SF | 62 | 22 | 22 | 14 | BSP1/2" | 10 |

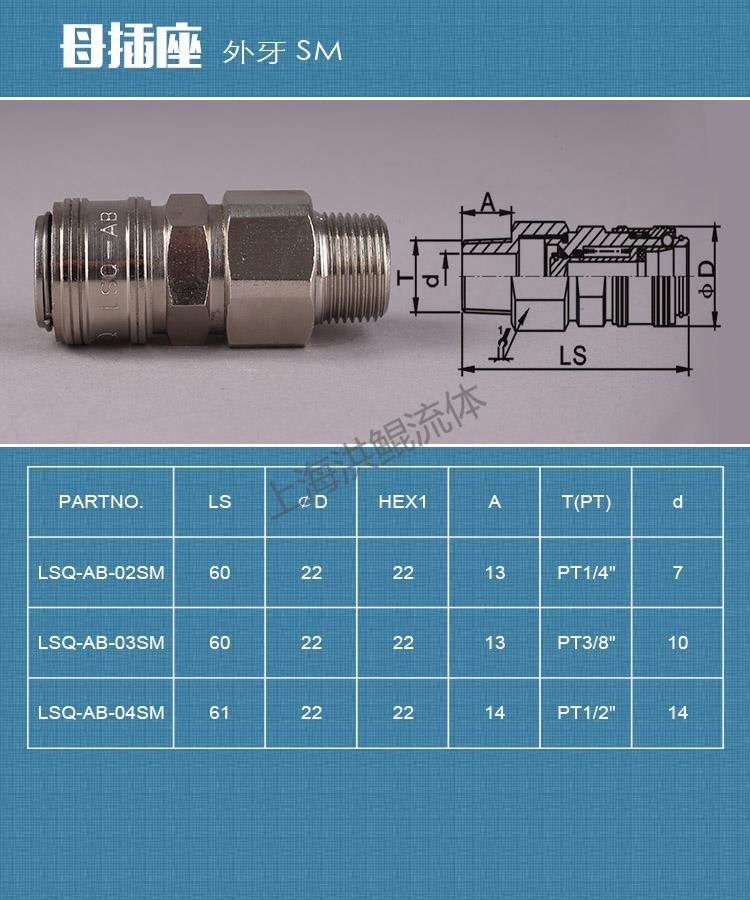

| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | d |
| LSQ-AB-02SM | 60 | 22 | 22 | 13 | PT1/4" | 7 |
| LSQ-AB-03SM | 60 | 22 | 22 | 13 | PT3/8" | 10 |
| LSQ-AB-04SM | 61 | 22 | 22 | 14 | PT1/2" | 14 |

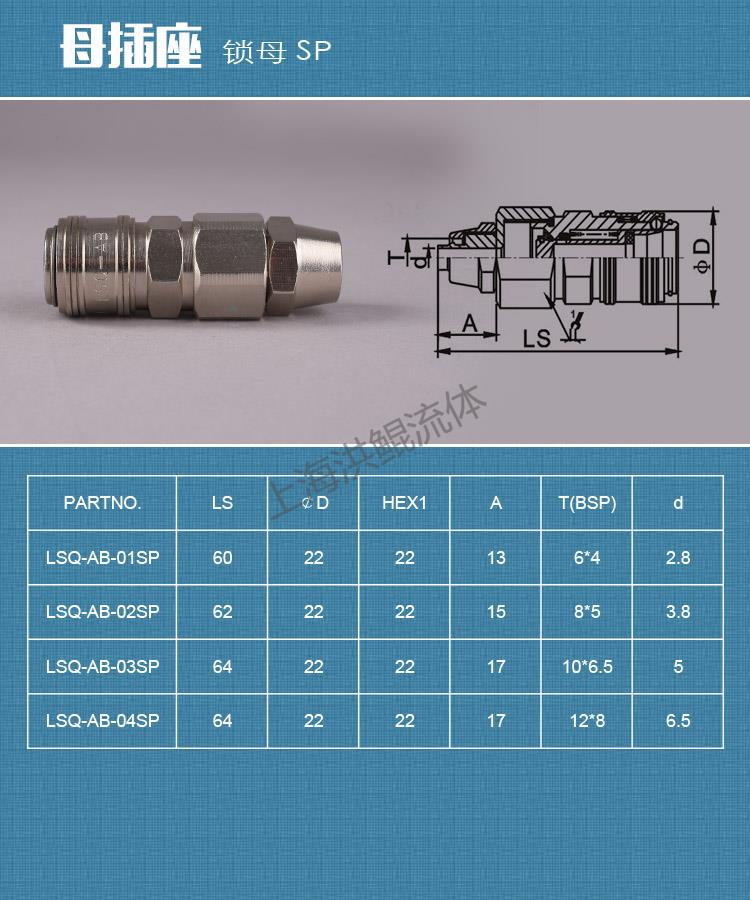

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| LSQ-AB-01SP | 60 | 22 | 22 | 13 | 6*4 | 2.8 |
| LSQ-AB-02SP | 62 | 22 | 22 | 15 | 8*5 | 3.8 |
| LSQ-AB-03SP | 64 | 22 | 22 | 17 | 10*6.5 | 5 |
| LSQ-AB-04SP | 64 | 22 | 22 | 17 | 12*8 | 6.5 |

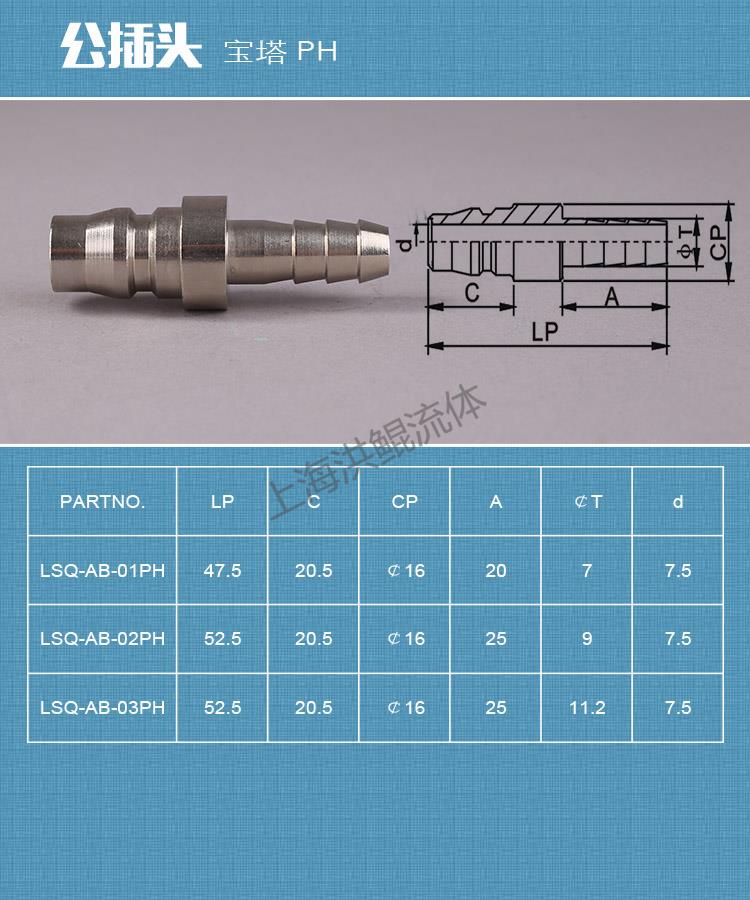

| PARTNO. | LP | C | CP | A | ￠T | d |
| LSQ-AB-01PH | 47.5 | 20.5 | ￠16 | 20 | 7 | 7.5 |
| LSQ-AB-02PH | 52.5 | 20.5 | ￠16 | 25 | 9 | 7.5 |
| LSQ-AB-03PH | 52.5 | 20.5 | ￠16 | 25 | 11.2 | 7.5 |

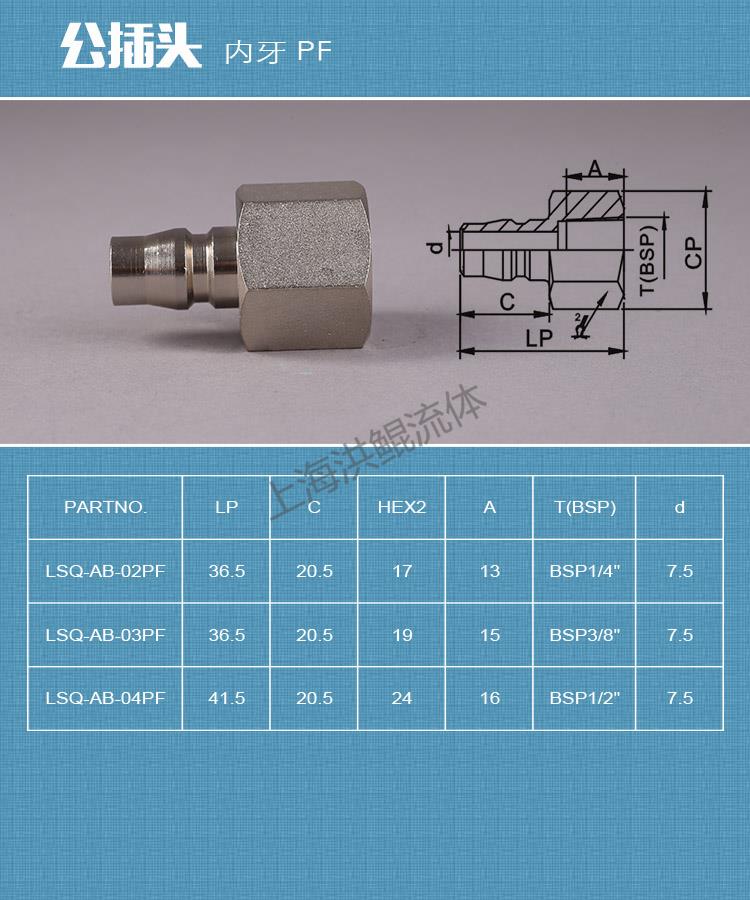

| PARTNO. | LP | C | HEX2 | A | T(BSP) | d |
| LSQ-AB-02PF | 36.5 | 20.5 | 17 | 13 | BSP1/4" | 7.5 |
| LSQ-AB-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8" | 7.5 |
| LSQ-AB-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2" | 7.5 |
| PARTNO. | LP | C | HEX2 | A | T(PT) | d |
| LSQ-AB-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4" | 7.5 |
| LSQ-AB-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8" | 7.5 |
| LSQ-AB-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2" | 7.5 |

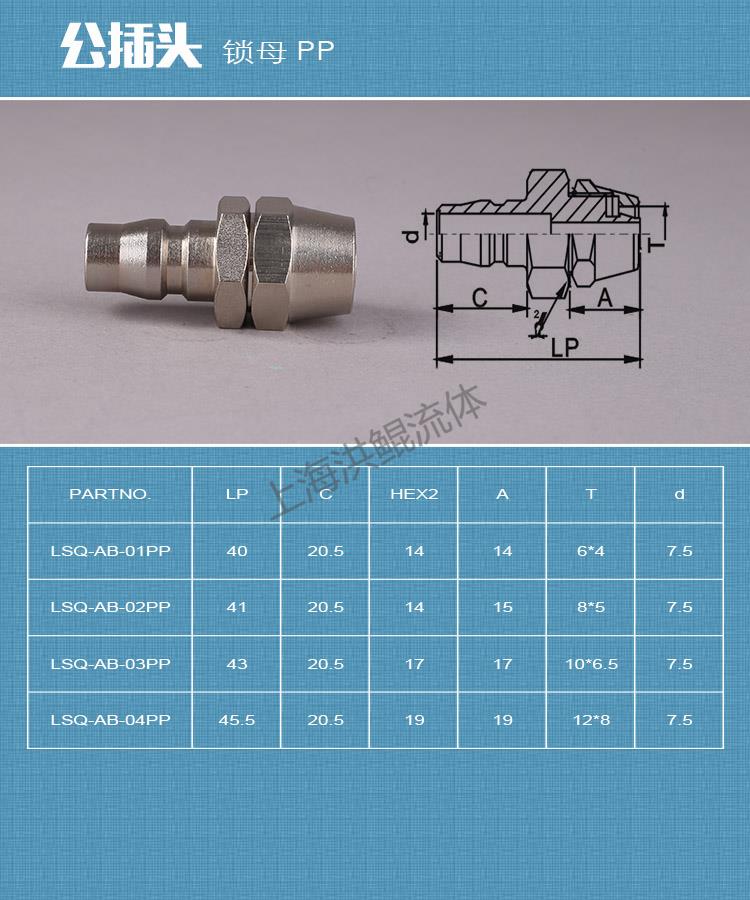

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-AB-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| LSQ-AB-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| LSQ-AB-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| LSQ-AB-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
