描述：

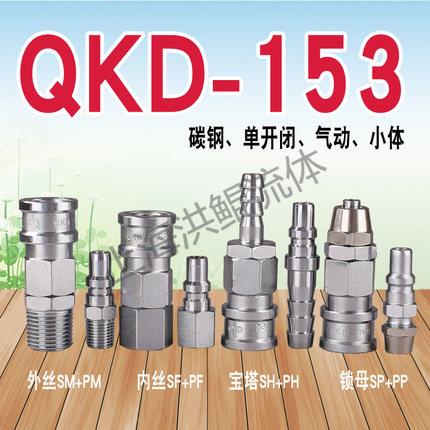

QKD153单开闭气动快速接头（小体）（碳钢）
→产品描述：中国最为广泛使用的连接头型式。
→技术优势：结构简单，多种连接备选。
→产品应用：气动工具，汽车工业，压缩空气，造船行业。
→工作压力：1.0Mpa
→工作温度：-20℃+120℃

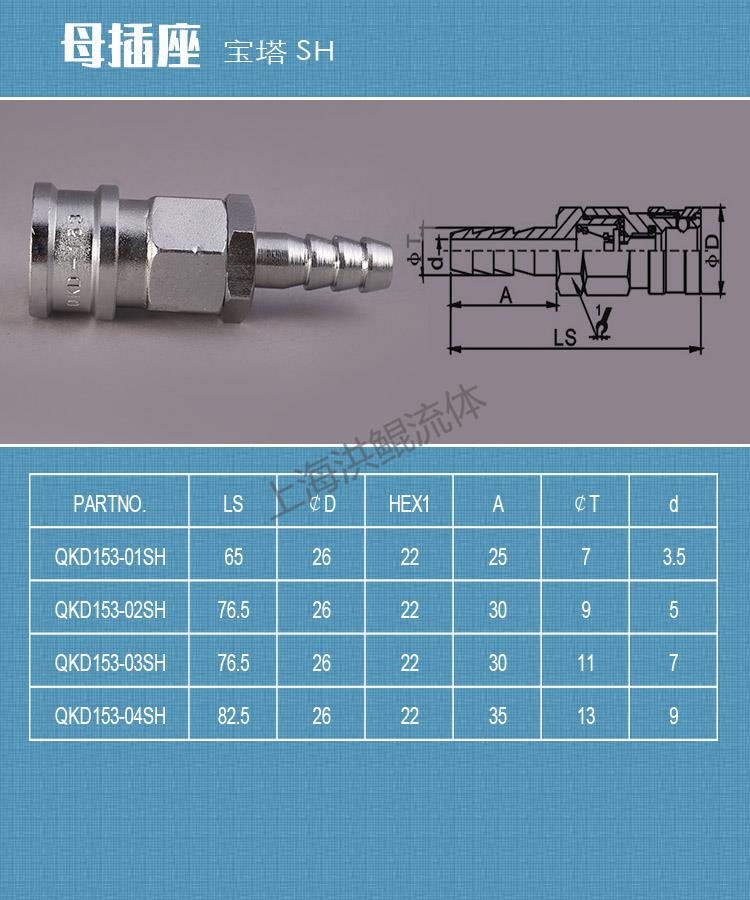

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| QKD153-01SH | 65 | 26 | 22 | 25 | 7 | 3.5 |
| QKD153-02SH | 76.5 | 26 | 22 | 30 | 9 | 5 |
| QKD153-03SH | 76.5 | 26 | 22 | 30 | 11 | 7 |
| QKD153-04SH | 82.5 | 26 | 22 | 35 | 13 | 9 |

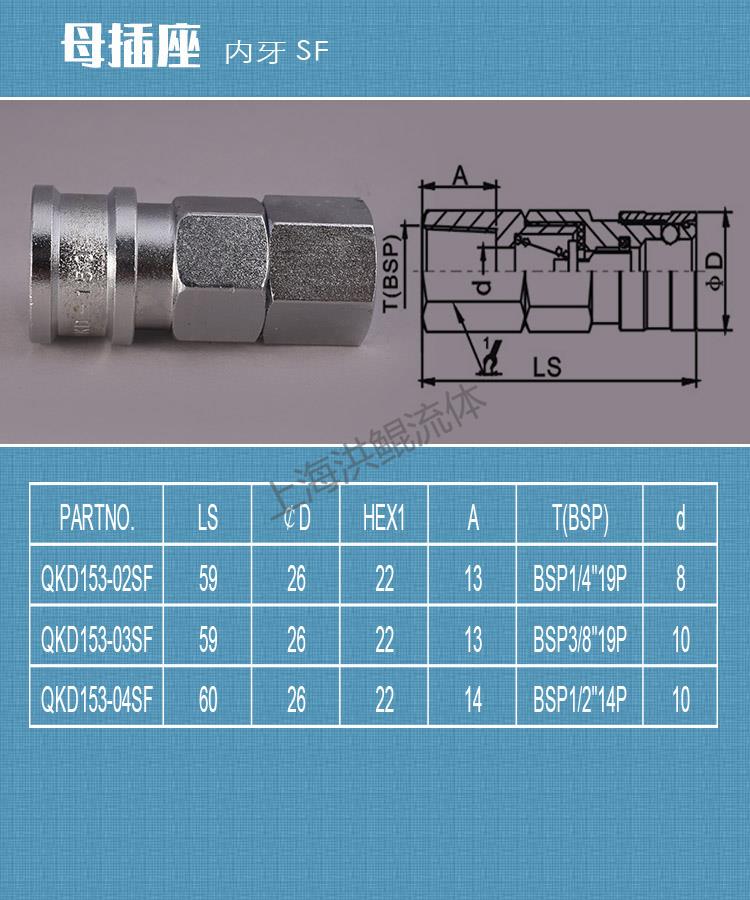

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| QKD153-02SF | 59 | 26 | 22 | 13 | BSP1/4"19P | 8 |
| QKD153-03SF | 59 | 26 | 22 | 13 | BSP3/8"19P | 10 |
| QKD153-04SF | 60 | 26 | 22 | 14 | BSP1/2"14P | 10 |

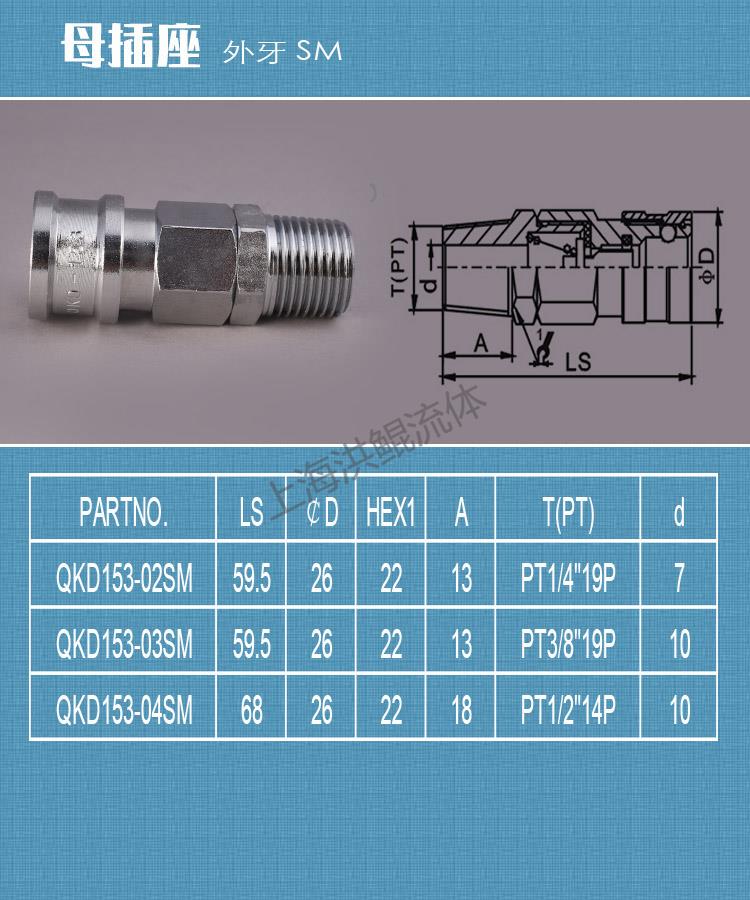

| PARTNO. | LS | ￠D | HEX1 | A | T(PT) | d |
| QKD153-02SM | 59.5 | 26 | 22 | 13 | PT1/4"19P | 7 |
| QKD153-03SM | 59.5 | 26 | 22 | 13 | PT3/8"19P | 10 |
| QKD153-04SM | 68 | 26 | 22 | 18 | PT1/2"14P | 10 |

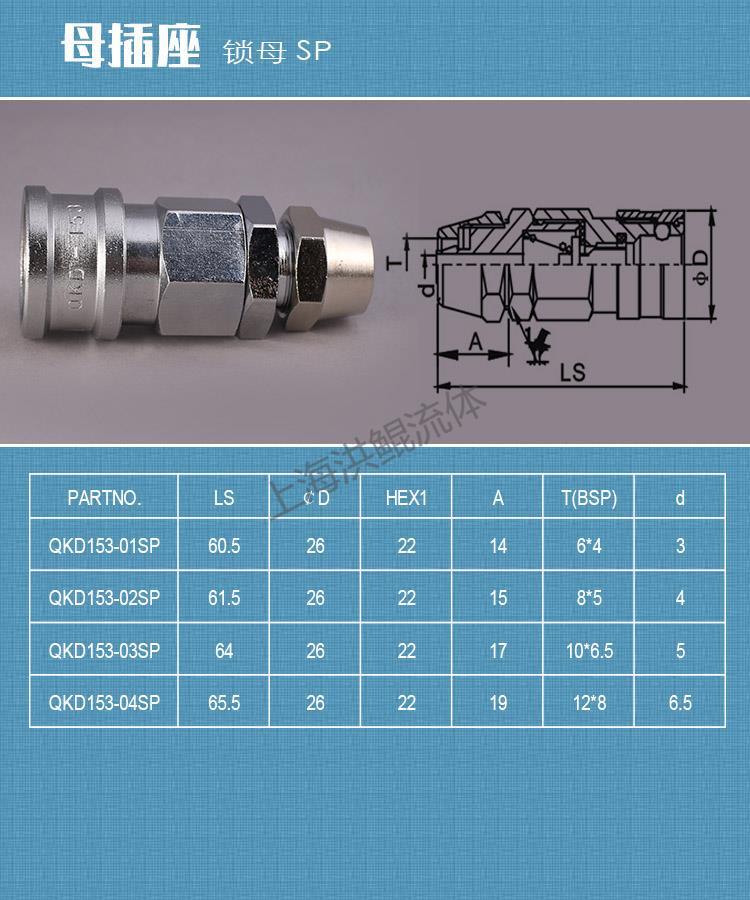

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| QKD153-01SP | 60.5 | 26 | 22 | 14 | 6*4 | 3 |
| QKD153-02SP | 61.5 | 26 | 22 | 15 | 8*5 | 4 |
| QKD153-03SP | 64 | 26 | 22 | 17 | 10*6.5 | 5 |
| QKD153-04SP | 65.5 | 26 | 22 | 19 | 12*8 | 6.5 |
| PARTNO. | LP | C | CP | A | ￠T | d |
| QKD153-01PH | 48 | 23 | ￠15.5 | 20 | 7 | 6 |
| QKD153-02PH | 58 | 23 | ￠15.5 | 30 | 9 | 6 |
| QKD153-03PH | 58 | 23 | ￠15.5 | 30 | 11 | 6 |
| PARTNO. | LP | C | HEX2 | A | T(BSP) | d |
| QKD153-02PF | 39 | 23 | 17 | 13 | BSP1/4"19P | 6 |
| QKD153-03PF | 39 | 23 | 19 | 13 | BSP3/8"19P | 6 |
| QKD153-04PF | 41 | 23 | 24 | 14 | BSP1/2"14P | 6 |

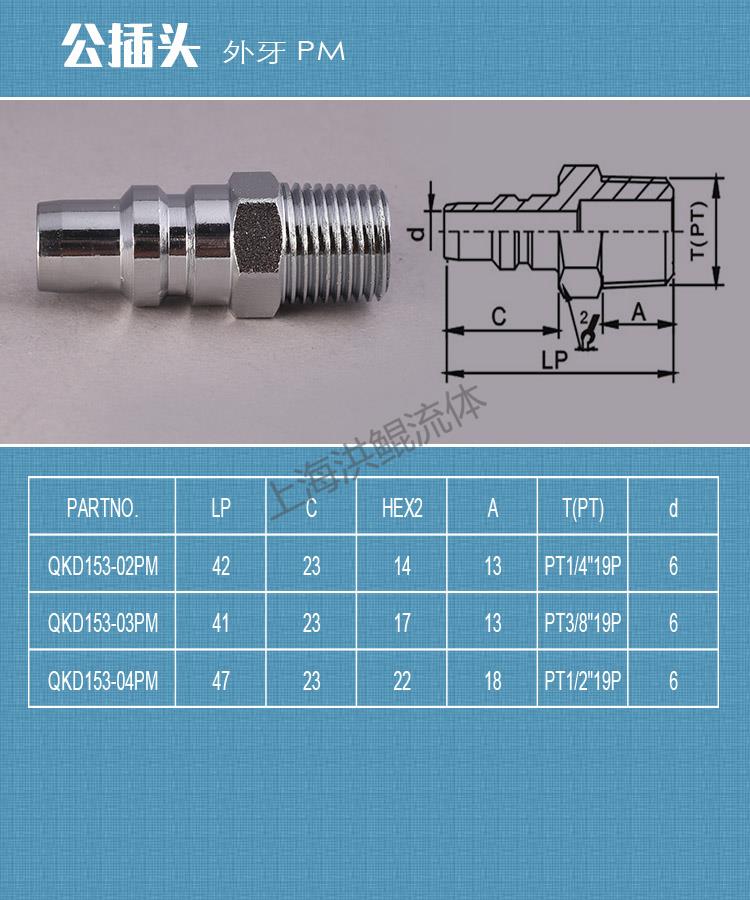

| PARTNO. | LP | C | HEX2 | A | T(PT) | d |
| QKD153-02PM | 42 | 23 | 14 | 13 | PT1/4"19P | 6 |
| QKD153-03PM | 41 | 23 | 17 | 13 | PT3/8"19P | 6 |
| QKD153-04PM | 47 | 23 | 22 | 18 | PT1/2"19P | 6 |

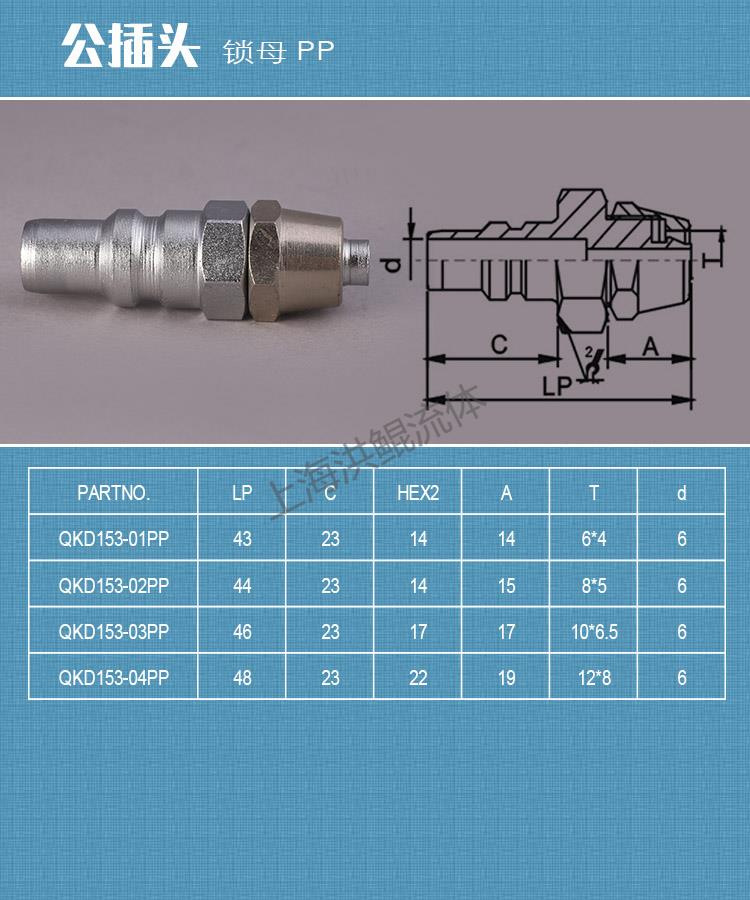

| PARTNO. | LP | C | HEX2 | A | T | d |
| QKD153-01PP | 43 | 23 | 14 | 14 | 6*4 | 6 |
| QKD153-02PP | 44 | 23 | 14 | 15 | 8*5 | 6 |
| QKD153-03PP | 46 | 23 | 17 | 17 | 10*6.5 | 6 |
| QKD153-04PP | 48 | 23 | 22 | 19 | 12*8 | 6 |
