描述：

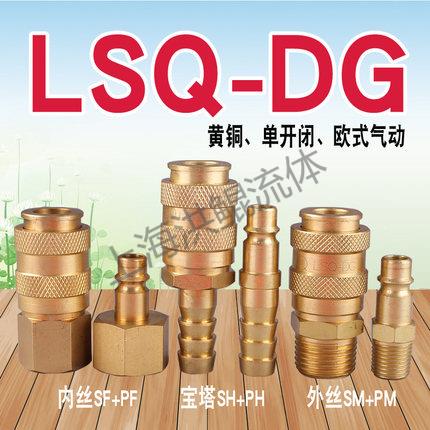

LSQ-DG单手半自动气动快速接头（黄铜）
→产品描述：单手操作，欧洲最为广泛使用的连接头型式。
→技术优势：单手操作，广泛的互换性，多种连接备选。
→产品应用：气动工具，实验室，测量和控制设备，机械设备。
→互换性：希恩（CEJN）320系列、利达时（RECTUS）25KA与26KA系列。
→工作压力：1.0Mpa
→工作温度：-20℃+120℃

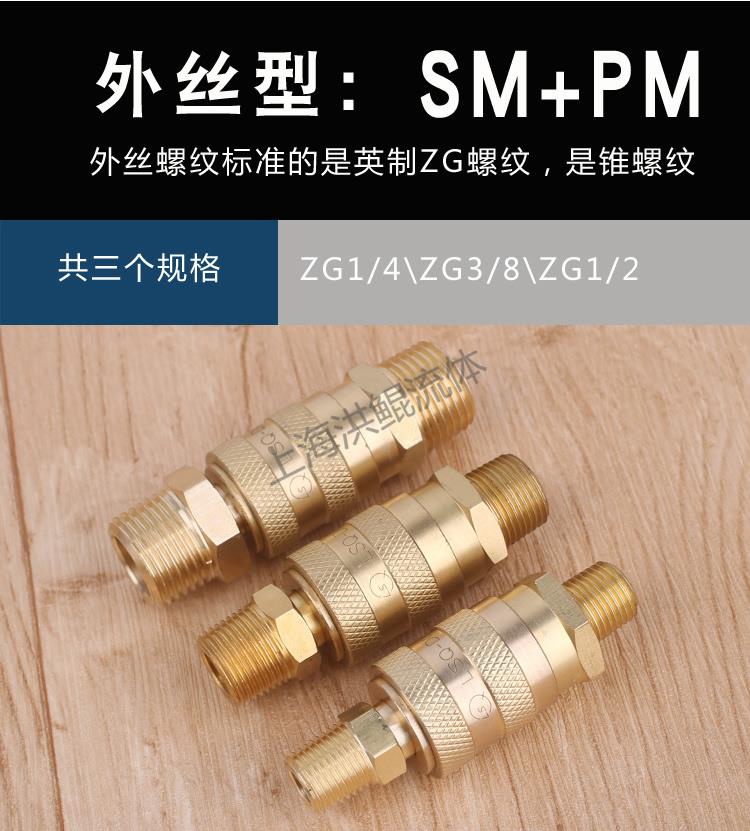

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LSQ-DG-02SM | 52.5 | 25 | 22 | 13 | 1/4 |
| LSQ-DG-03SM | 52.5 | 25 | 22 | 13 | 3/8 |
| LSQ-DG-04SM | 54.4 | 25 | 22 | 14 | 1/2 |

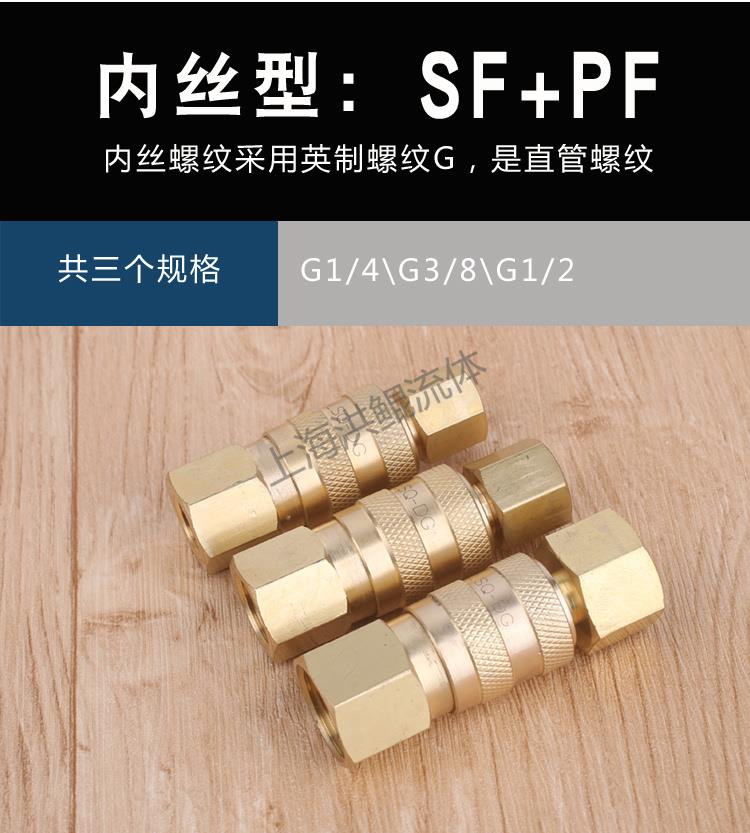

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LSQ-DG-02SF | 52.5 | 25 | 22 | 13 | 1/4 |
| LSQ-DG-03SF | 52.5 | 25 | 22 | 13 | 3/8 |
| LSQ-DG-04SF | 53.5 | 25 | 24 | 14 | 1/2 |

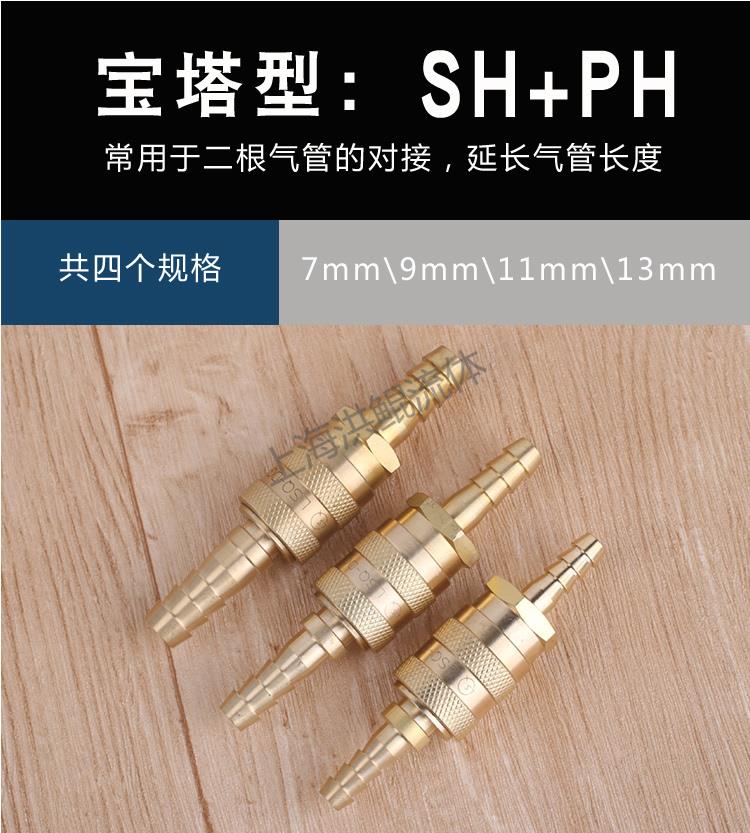

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LSQ-DG-02SH | 64.5 | 25 | 22 | 25 | 9 |
| LSQ-DG-03SH | 69.5 | 25 | 22 | 30 | 10.5 |
| LSQ-DG-04SH | 69.5 | 25 | 22 | 30 | 13 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-DG-02PM | 40 | 21 | 14 | 13 | 1/4 | 7 |
| LSQ-DG-03PM | 40 | 21 | 17 | 13 | 3/8 | 7 |
| LSQ-DG-04PM | 42 | 21 | 22 | 14 | 1/2 | 7 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-DG-02PF | 37 | 21 | 17 | 13 | 1/4 | 7 |
| LSQ-DG-03PF | 38 | 21 | 19 | 13 | 3/8 | 7 |
| LSQ-DG-04PF | 38 | 21 | 24 | 14 | 1/2 | 7 |
| PARTNO. | LP | C | CP | A | T | d |
| LSQ-DG-02PH | 51 | 21 | ￠14 | 25 | 9 | 7 |
| LSQ-DG-03PH | 56 | 21 | ￠14 | 30 | 10.5 | 7 |
| LSQ-DG-04PH | 56 | 21 | ￠14 | 30 | 13 | 7 |
