描述：

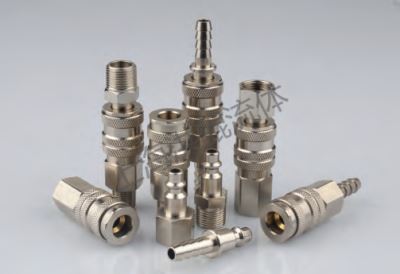

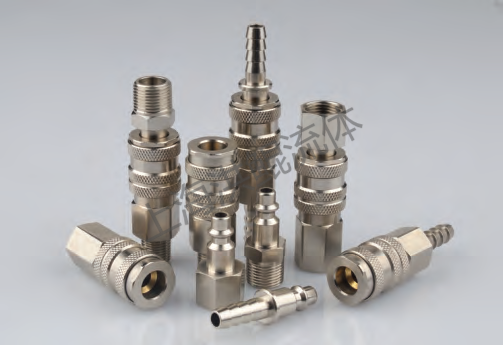

LSQ-F开闭式气动快速接头（黄铜）
→产品描述：单手操作，单开闭阀。
→技术优势：单手操作，大流量、长型插头设计可以很紧的插入母体。
→产品应用：气动工具，测量和控制设备，压缩空气。
→互换性：英国（PCL）60系列、利达时（RECTUS）19KA系列。
→工作压力：1.0Mpa
→工作温度：-20℃+100℃
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-19-02SM | 64.5 | 23.3 | 19 | 13 | ZG1/4 | 7 |
| LSQ-19-03SM | 63 | 23.3 | 19 | 13 | ZG3/8 | 11 |
| LSQ-19-04SM | 60.5 | 23.3 | 22 | 14 | ZG1/3 | 14 |
| PART NO. | LP | D | HEX1 | A | T | d |
| LSQ-19-02PM | 50.3 | 31.5 | 14 | 13 | ZG1/4 | 4.8 |
| LSQ-19-03PM | 51 | 31.5 | 17 | 13 | ZG3/8 | 4.8 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-19-02SF | 58.5 | 23.3 | 19 | 10 | G1/4 | 14 |
| LSQ-19-03SF | 57.5 | 23.3 | 19 | 9 | G3/8 | 14 |
| LSQ-19-04SF | 60.5 | 23.3 | 24 | 12 | G1/2 | 14 |
| PART NO. | LP | D | HEX1 | A | T | d |
| LSQ-19-02PF | 47.5 | 31.5 | 17 | 13 | G1/4 | 4.8 |
| LSQ-19-03PF | 47.5 | 31.5 | 19 | 13 | G3/8 | 4.8 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-19-01SH | 73 | 23.3 | 19 | 20 | 7 | 4 |
| LSQ-19-02SH | 76.5 | 23.3 | 19 | 25 | 9 | 5 |
| LSQ-19-03SH | 76.5 | 23.3 | 19 | 25 | 11 | 7.5 |
| PART NO. | LP | D | HEX1 | A | T | d |
| LSQ-19-01PH | 54 | 31.5 | 15 | 20 | 7 | 4.8 |
| LSQ-19-02PH | 59 | 31.5 | 15 | 25 | 9 | 4.8 |
| LSQ-19-03PH | 59 | 31.5 | 15 | 25 | 11 | 4.8 |
