描述：

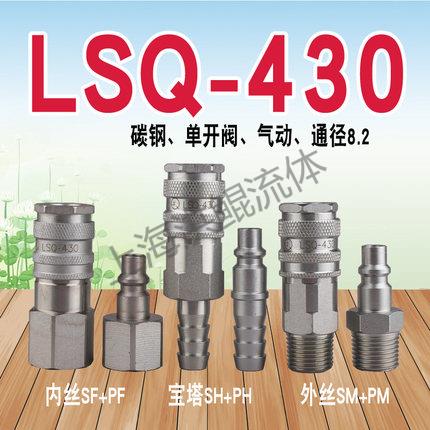

LSQ-430 气动快速接头（碳钢）
→产品描述：有效通径8.2毫米，ISO6150B标准
→技术优势：超大流量阀，单手操作。
→产品应用：气动工具，汽车工业，工程机械。
→互换性：希恩(CEJN)430系列。
→工作压力：1.6Mpa
→工作温度：-20℃+120℃

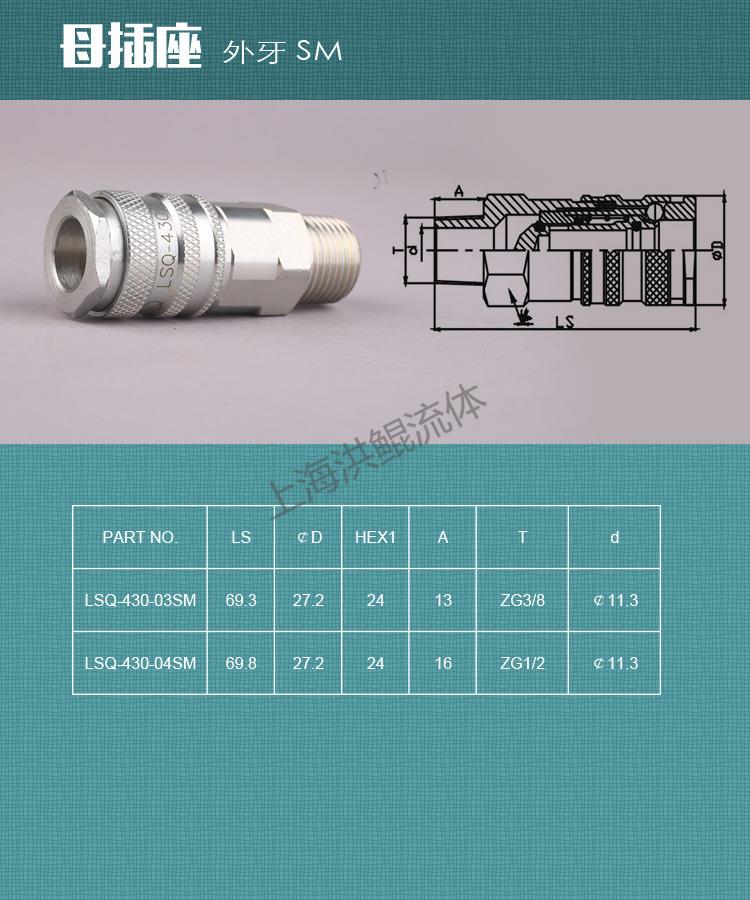

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-430-03SM | 69.3 | 27.2 | 24 | 13 | ZG3/8 | ￠11.3 |
| LSQ-430-04SM | 69.8 | 27.2 | 24 | 16 | ZG1/2 | ￠11.3 |

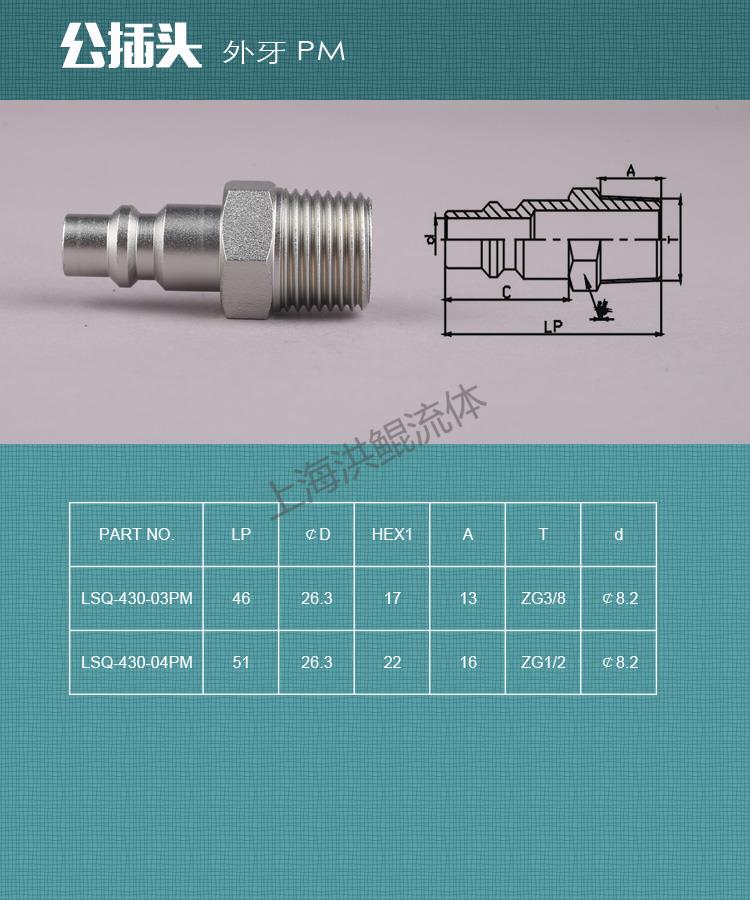

| PART NO. | LP | ￠D | HEX1 | A | T | d |
| LSQ-430-03PM | 46 | 26.3 | 17 | 13 | ZG3/8 | ￠8.2 |
| LSQ-430-04PM | 51 | 26.3 | 22 | 16 | ZG1/2 | ￠8.2 |

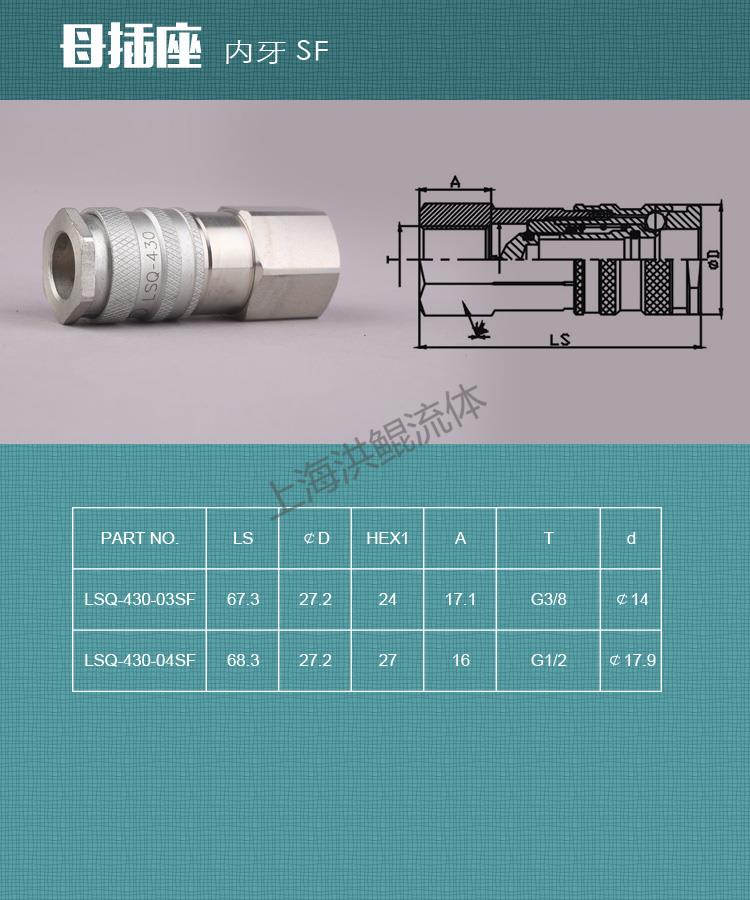

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-430-03SF | 67.3 | 27.2 | 24 | 17.1 | G3/8 | ￠14 |
| LSQ-430-04SF | 68.3 | 27.2 | 27 | 16 | G1/2 | ￠17.9 |

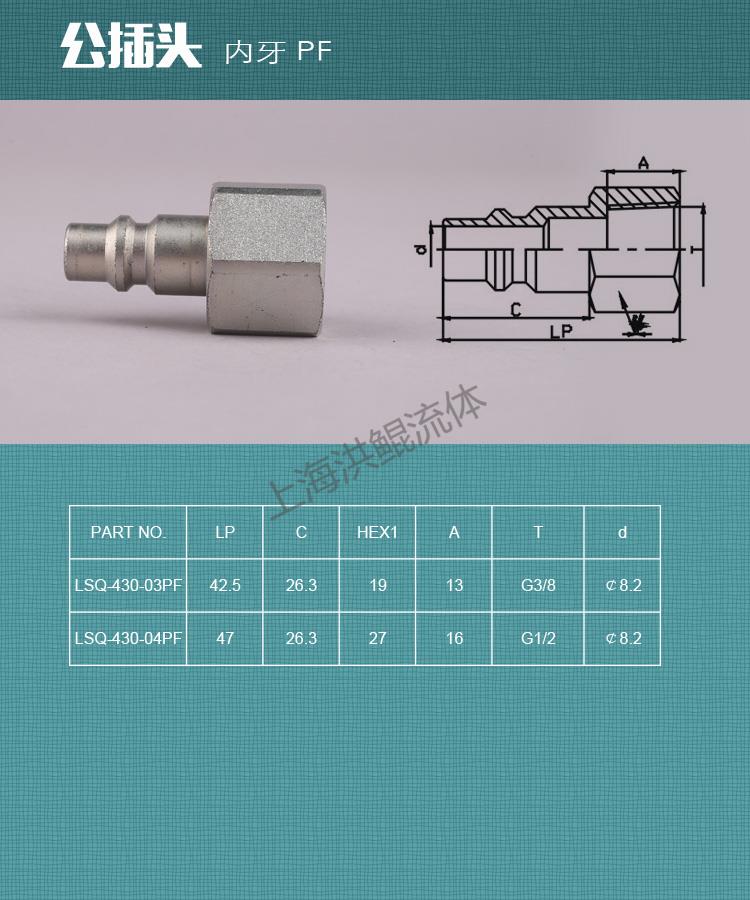

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-430-03PF | 42.5 | 26.3 | 19 | 13 | G3/8 | ￠8.2 |
| LSQ-430-04PF | 47 | 26.3 | 27 | 16 | G1/2 | ￠8.2 |

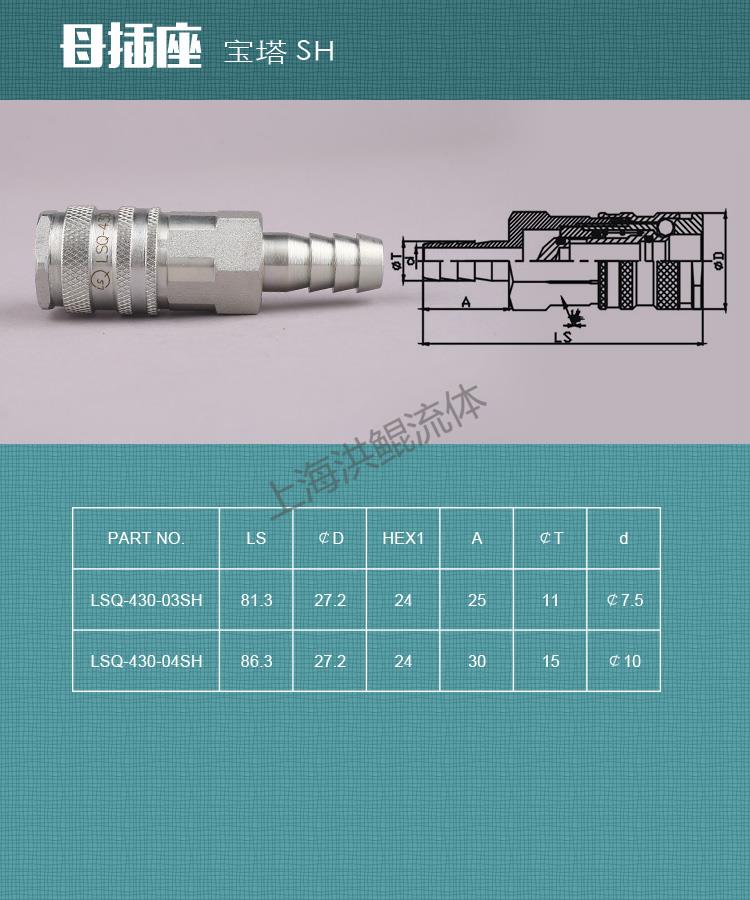

| PART NO. | LS | ￠ D | HEX1 | A | ￠ T | d |
| LSQ-430-03SH | 81.3 | 27.2 | 24 | 25 | 11 | ￠ 7.5 |
| LSQ-430-04SH | 86.3 | 27.2 | 24 | 30 | 15 | ￠ 10 |

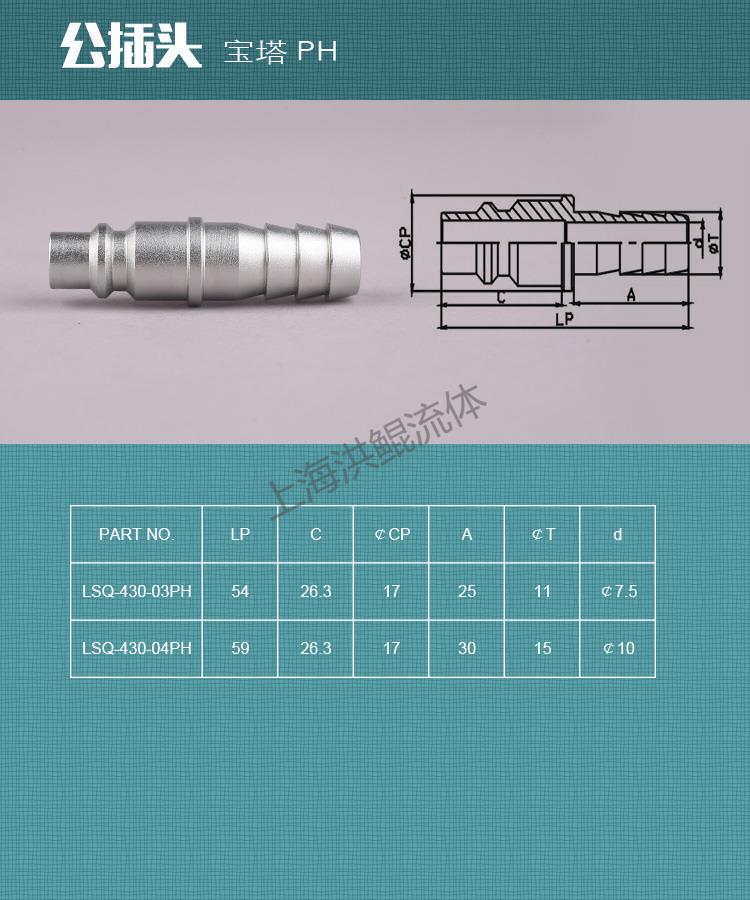

| PART NO. | LP | C | ￠ CP | A | ￠ T | d |
| LSQ-430-03PH | 54 | 26.3 | 17 | 25 | 11 | ￠ 8.2 |
| LSQ-430-04PH | 59 | 26.3 | 17 | 30 | 15 | ￠ 8.2 |
