描述：

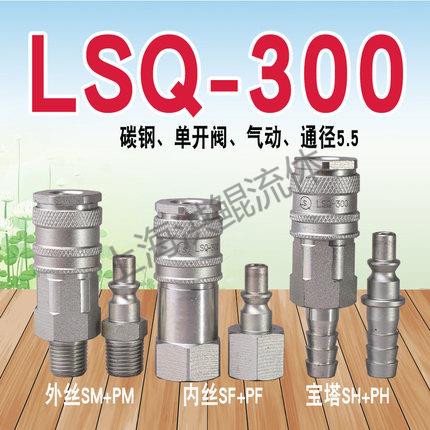

LSQ-300气动快速接头（碳钢）
→产品描述：有效通径5.5毫米，ARO210标准品
→技术优势：超大流量阀，单手操作。
→产品应用：气动工具，生成和装配线，机械设备。
→互换性：派克(PARKER)50系列利时达(RECTUS)22KA系列希恩(CEJN)300系列。
→工作压力：1.6Mpa
→工作温度：-20℃+120℃

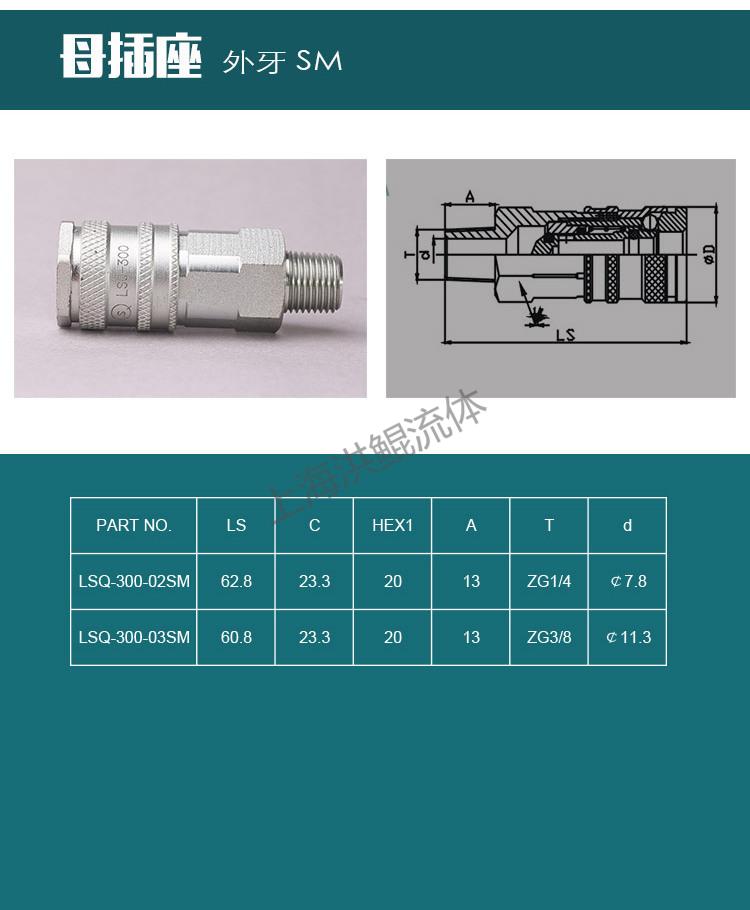

| PART NO. | LS | C | HEX1 | A | T | d |
| LSQ-300-02SM | 62.8 | 23.3 | 20 | 13 | ZG1/4 | ￠7.8 |
| LSQ-300-03SM | 60.8 | 23.3 | 20 | 13 | ZG3/8 | ￠11.3 |

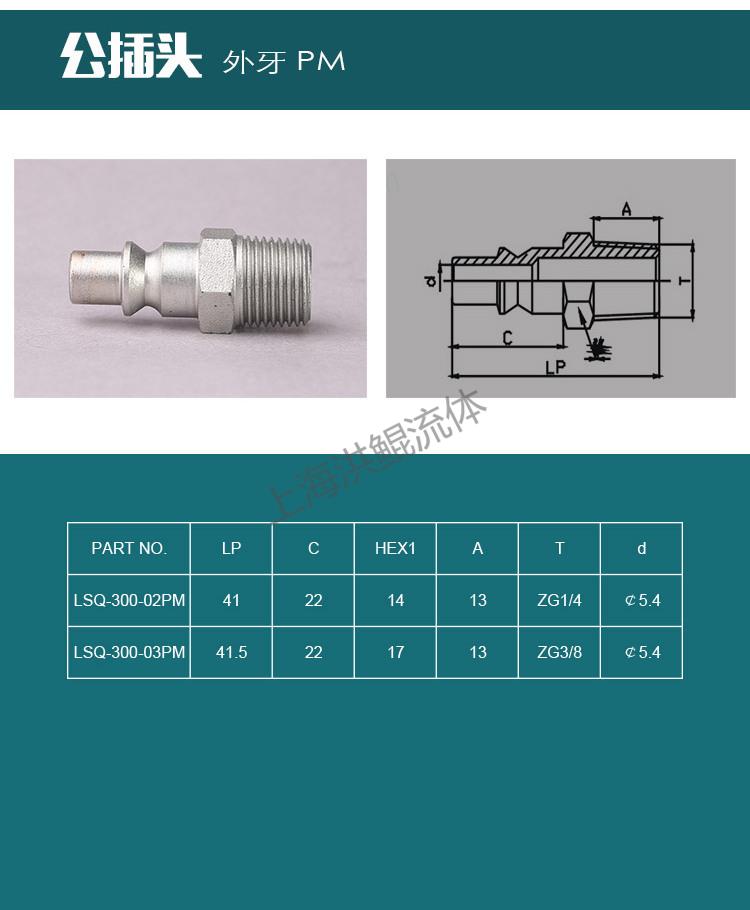

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-300-02PM | 41 | 22 | 14 | 13 | ZG1/4 | ￠5.4 |
| LSQ-300-03PM | 41.5 | 22 | 17 | 13 | ZG3/8 | ￠5.4 |

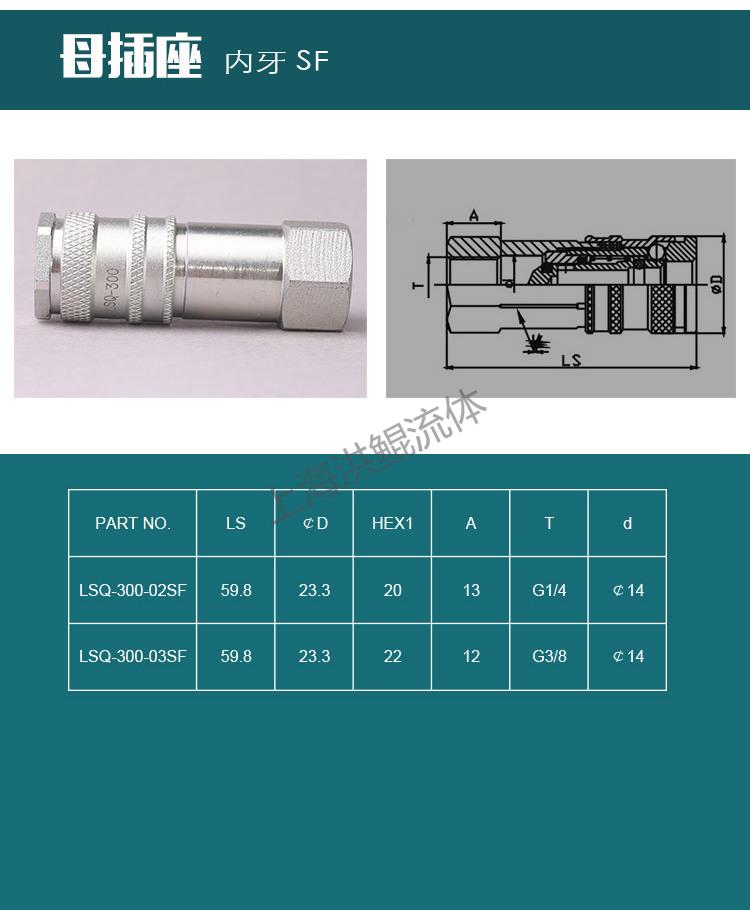

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-300-02SF | 59.8 | 23.3 | 20 | 13 | G1/4 | ￠14 |
| LSQ-300-03SF | 59.8 | 23.3 | 22 | 12 | G3/8 | ￠14 |

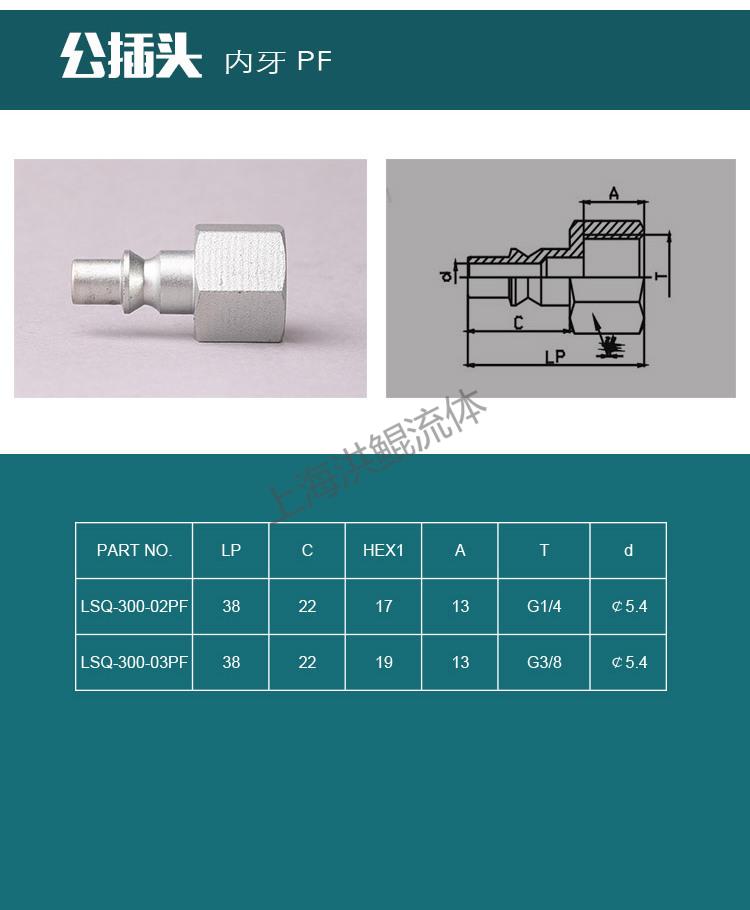

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-300-02PF | 38 | 22 | 17 | 13 | G1/4 | ￠5.4 |
| LSQ-300-03PF | 38 | 22 | 19 | 13 | G3/8 | ￠5.4 |

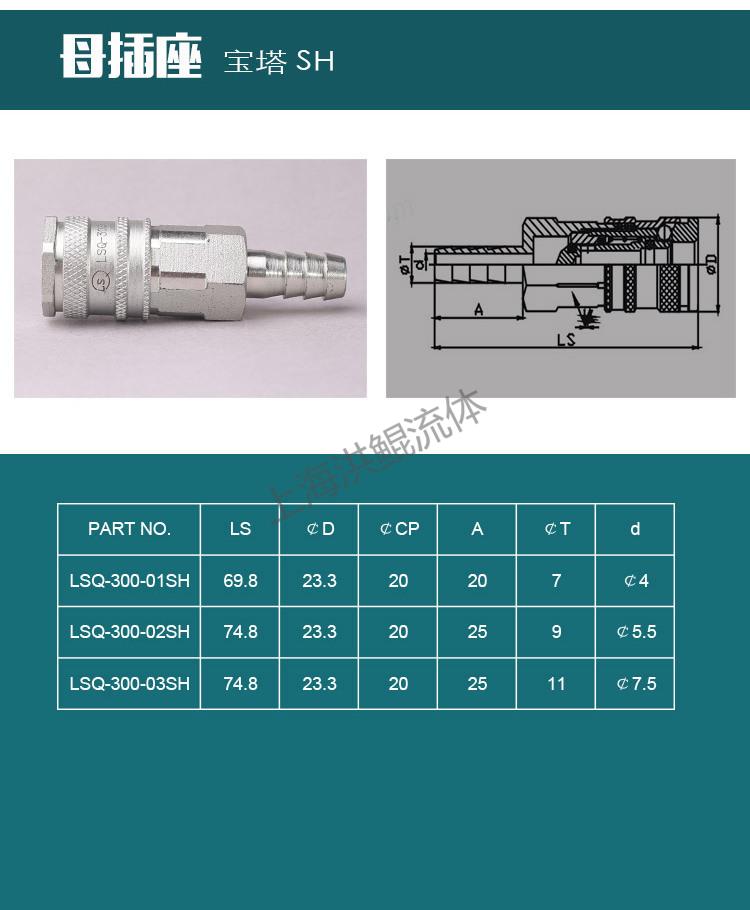

| PART NO. | LS | ￠D | ￠CP | A | ￠T | d |
| LSQ-300-01SH | 69.8 | 23.3 | 20 | 20 | 7 | ￠4 |
| LSQ-300-02SH | 74.8 | 23.3 | 20 | 25 | 9 | ￠5.5 |
| LSQ-300-03SH | 74.8 | 23.3 | 20 | 25 | 11 | ￠7.5 |

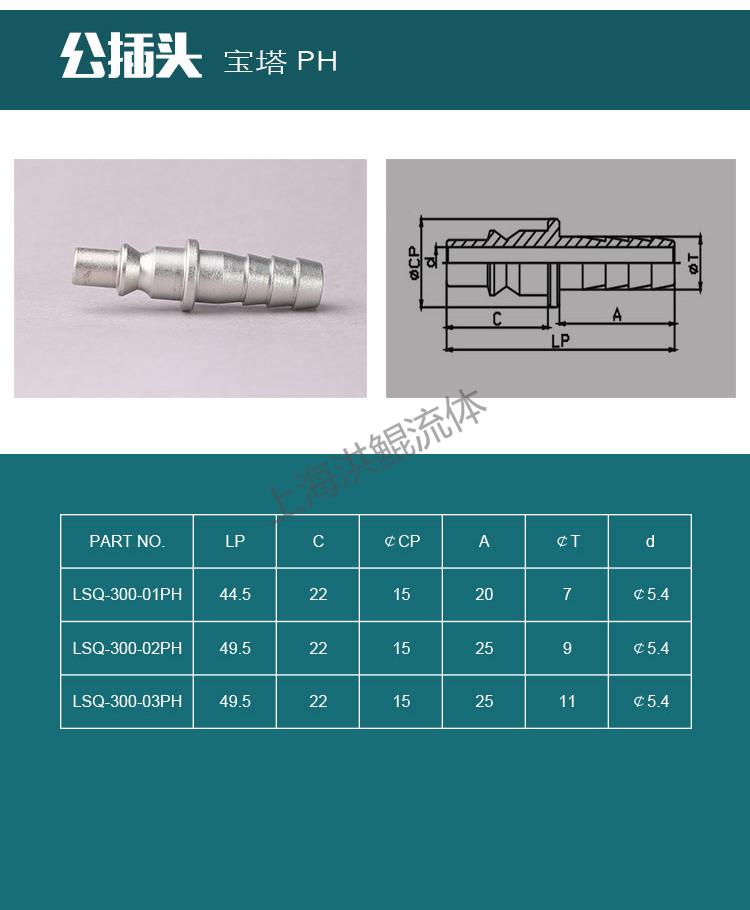

| PART NO. | LP | C | ￠CP | A | ￠T | d |
| LSQ-300-01PH | 44.5 | 22 | 15 | 20 | 7 | ￠5.4 |
| LSQ-300-02PH | 49.5 | 22 | 15 | 25 | 9 | ￠5.4 |
| LSQ-300-03PH | 49.5 | 22 | 15 | 25 | 11 | ￠5.4 |
