LSQ-S5_LSQ-S5C推拉式液压快速接头,LSQ-S5

产品介绍

描述：

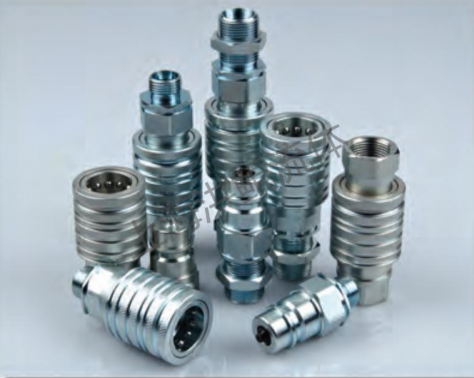

LSQ-S5/LSQ-S5C推拉式液压快速接头
应用：LSQ-S5/LSQ-S5C系列广泛应用于各种工业用途，用于建筑设备、森林设备、农业机械及液压机具

技术规范：

特征：
1、在接头被夹紧或以舱壁形式安装时，双作用套筒可以用单手操作。(仅1/2)
2、接头断开时，阀芯自动闭合，防止泄漏。
3、接头连接后，阀自动开启，在额定工作范围内，始终保持流体的畅通。
4、关键部件经过感应淬火，所以耐用性好。
5、可靠的球锁机构将相匹配的两半部分结合在一起。
6、母插座和公插头采用实心的棒料精密制造。
7、本接头符合ISO5675标准。
8、并与下列产品互换：美国派克(PARKER)4000,4250系列、意大利(FASTER)NV,CPV-CNV系列

性能：测试液体油-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

ISO	PARTNO.	LS	￠ D	HEX1	T
12.5	LSQ-S5-04SF3/8	66	38	27	3/8BSP NPT3/8
12.5	LSQ-S5-04SF1/2	66	38	27	1/2BSP NPT1/2
12.5	LSQ-S5-04SF3/4	69	38	34	3/4BSP NPT3/4
12.5	LSQ-S5-04SFM14	66	38	27	M14*1.5
12.5	LSQ-S5-04SFM16	66	38	27	M16*1.5
12.5	LSQ-S5-04SFM18	66	38	27	M18*1.5
12.5	LSQ-S5-04SFM22	66	38	27	M22*1.5

S5系列(1/2")

母插座

ISO	PARTNO.	LS	￠ D	HEX1	T
12.5	S5-04SF3/8	66	38	27	3/8BSP NPT3/8
12.5	S5-04SF1/2	66	38	27	1/2BSP NPT1/2
12.5	S5-04SF3/4	69	38	34	3/4BSP NPT3/4
12.5	S5-04SFM14	66	38	27	M14*1.5
12.5	S5-04SFM16	66	38	27	M16*1.5
12.5	S5-04SFM18	66	38	27	M18*1.5
12.5	S5-04SFM22	66	38	27	M22*1.5

公插头

ISO	PARTNO.	LP	d	C	HEX2	T
12.5	S5-04PF3/8	61.5	20.5	27	27	3/8BSP NPT3/8
12.5	S5-04PF1/2	44	20.5	27	27	1/2BSP NPT1/2
12.5	S5-04PF3/4	64.5	20.5	34	34	3/4BSP NPT3/4
12.5	S5-04PFM14	61.5	20.5	27	27	M14*1.5
12.5	S5-04PFM16	61.5	20.5	27	27	M16*1.5
12.5	S5-04PFM18	61.5	20.5	27	27	M18*1.5
12.5	S5-04PFM22	44	20.5	27	27	M22*1.5

S5 Socket

ISO	PARTNO.	LS	￠ D	HEX1	A	T
12.5	S5-04SM8L	73.5	38	27	12	M14*1.5
12.5	S5-04SM10L	73.5	38	27	12	M16*1.5
12.5	S5-04SM12L	73.5	38	27	12	M18*1.5
12.5	S5-04SM15L	75.5	38	27	14	M22*1.5
12.5	S5-04SM18L	75.5	38	27	14	M26*1.5
12.5	S5-04SM10S	73.5	38	27	12	M18*1.5
12.5	S5-04SM12S	73.5	38	27	12	M20*1.5
12.5	S5-04SM14S	75.5	38	27	14	M22*1.5
12.5	S5-04SM16S	75.5	38	27	14	M24*1.5
12.5	S5-04SM20S	77.5	38	30	16	M30*2

S5 Plug

ISO	PARTNO.	LP	d	C	HEX1	A	T
12.5	S5-04PM8L	58.5	20.5	27	27	12	M14*1.5
12.5	S5-04PM10L	58.5	20.5	27	27	12	M16*1.5
12.5	S5-04PM12L	58.5	20.5	27	27	12	M18*1.5
12.5	S5-04PM15L	60.5	20.5	27	27	14	M22*1.5
12.5	S5-04PM18L	60.5	20.5	27	27	14	M26*1.5
12.5	S5-04PM10S	58.5	20.5	27	27	12	M18*1.5
12.5	S5-04PM12S	58.5	20.5	27	27	12	M20*1.5
12.5	S5-04PM14S	60.5	20.5	27	27	14	M22*1.5
12.5	S5-04PM16S	60.5	20.5	27	27	14	M24*1.5
12.5	S5-04PM20S	62.5	20.5	27	30	16	M30*2

S5C Socket

ISO	PARTNO.	LP	d	C	HEX1	HEX3	T
12.5	S5C-04PM8L	72	20.5	27	19	27	M14*1.5
12.5	S5C-04PM10L	72	20.5	27	24	27	M16*1.5
12.5	S5C-04PM12L	72	20.5	27	24	27	M18*1.5
12.5	S5C-04PM15L	74	20.5	27	27	27	M22*1.5
12.5	S5C-04PM18L	74	20.5	27	30	27	M26*1.5
12.5	S5C-04PM10S	72	20.5	27	24	27	M18*1.5
12.5	S5C-04PM12S	72	20.5	27	27	27	M20*1.5
12.5	S5C-04PM14S	74	20.5	27	27	27	M22*1.5
12.5	S5C-04PM16S	74	20.5	27	30	27	M24*1.5
12.5	S5C-04PM20S	81	20.5	27	36	30	M30*2

S5C Plug

ISO	PARTNO.	LP	C	HEX1	HEX3	T
12.5	S5C-04PM8L	72	27	19	27	M14*1.5
12.5	S5C-04PM10L	72	27	24	27	M16*1.5
12.5	S5C-04PM12L	72	27	24	27	M18*1.5
12.5	S5C-04PM15L	74	27	27	27	M22*1.5
12.5	S5C-04PM18L	74	27	30	27	M26*1.5
12.5	S5C-04PM10S	72	27	24	27	M18*1.5
12.5	S5C-04PM12S	72	27	27	27	M20*1.5
12.5	S5C-04PM14S	74	27	27	27	M22*1.5
12.5	S5C-04PM16S	74	27	30	27	M24*1.5
12.5	S5C-04PM20S	81	27	36	30	M30*2
